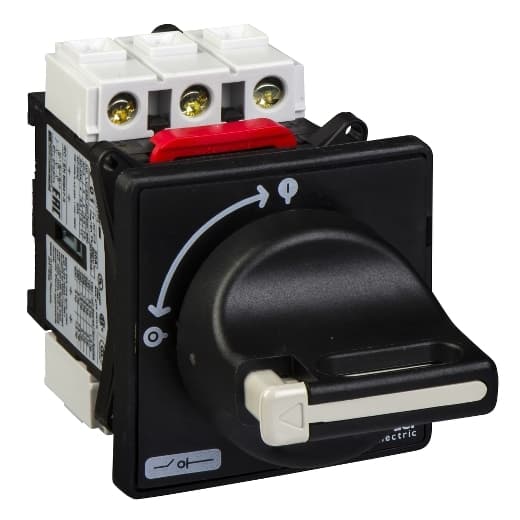

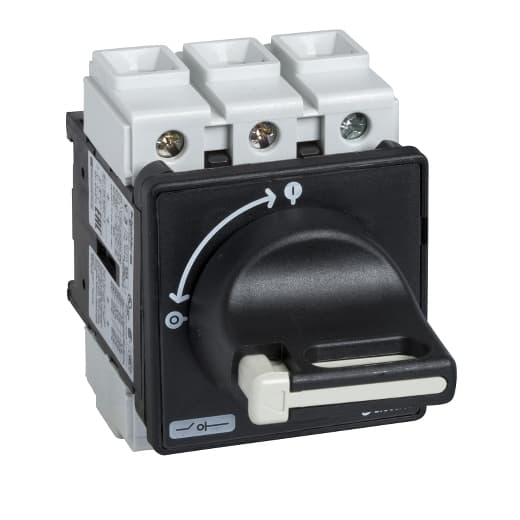

VBD0 Schneider Electric Industrial Automation Components

Product Details

• Handle Front Plate Color
  Black
• Product Type
  Switch disconnector
• [Ie] Rated Operational Current
  14.5 A AC-23 Ue: 400 V
• Suitability For Isolation
  Yes
• Control Type
  Rotary handle
• Range
  TeSys
• [Ith] Conventional Free Air Thermal Current
  25 A
• [Icw] Rated Short Time Withstand Current
  300 A 400 V 1 s
• [Uimp] Rated Impulse Withstand Voltage
  8 kV
• Marking
  0 - 1
• Product Weight
  0.47 lb(US) (0.215 kg)
• Device Short Name
  VBD
• Tightening Torque
  Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals
• Base Dimension
  60 x 60 mm
• Product Name
  TeSys VARIO
• [Ue] IEC Rated Operational Voltage
  690 V AC 50/60 Hz
• [Icm] Rated Short Circuit Making Capacity
  1 kA 400 V at Ipeak
• Mechanical Durability
  100000 cycles
• Height
  2.91 in (74 mm)
• Mounting Method
  Hole 0.89 in (22.5 mm) handle
Contact Type And Composition
3 NO
Rotary Handle Padlocking
1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Intermittent Duty Class
30
Device Application
Preventive maintenance
Number Of Poles
3P
[Ithe] Conventional Enclosed Thermal Current
20 A
Rotary Handle Mounting Style
Direct
Performance Level
High performance
Handle Color
Black
Width
2.36 in (60 mm)
Rated Conditional Short Circuit Current
10 kA 400 V 25 A aM 10 kA 400 V 25 A gG
IEC Terminal Connection
Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
Device Composition
Switch Handle
Network Type
AC DC
Mounting Support
Handle door Switch door
Electrical Durability
100000 cycles AC-21 30000 cycles DC-1...5
Making Capacity ( I Rms)
250 A 400 V AC-21A 250 A 400 V AC-22A 250 A 400 V AC-23A
Breaking Capacity
200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A)
IEC Rated Operational Power In W
11 kW 500 V AC-23A) 11 kW 690 V AC-3) 15 kW 690 V AC-23A) 4 kW 230...240 V AC-3) 5.5 kW 400...415 V AC-3) 7.5 kW 500 V AC-3) 5.5 kW 230...240 V AC-23A) 7.5 kW 400...415 V AC-23A)
