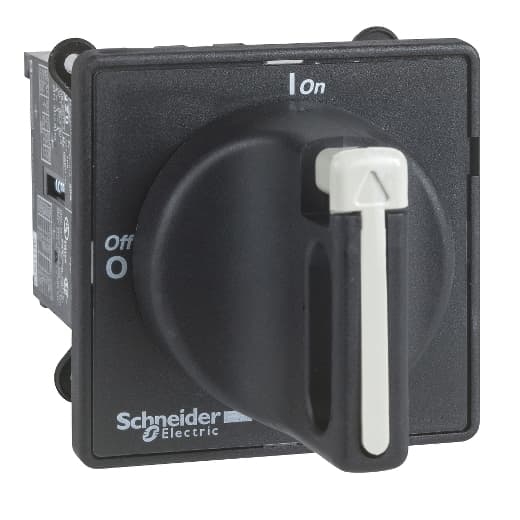

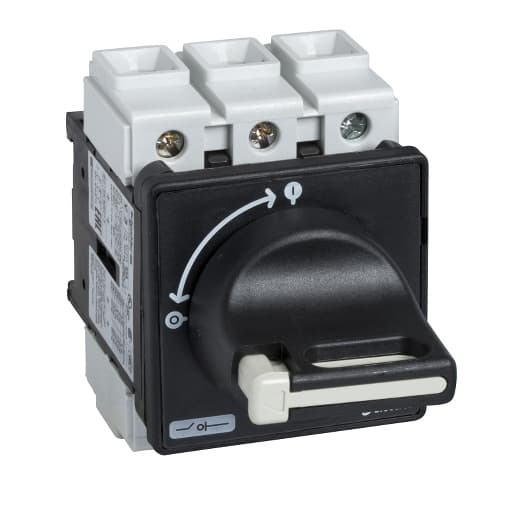

VBDN20 Schneider Electric Industrial Automation Components

Product Details

• Height
  2.36 in (60 mm)
• Handle Colour
  Black
• [Ithe] Conventional Enclosed Thermal Current
  16 A
• Product Or Component Type
  Switch disconnector
• Handle Front Plate Colour
  Black
• [Ie] Rated Operational Current
  11 A AC-23)400 V
• Handle Front Plate Dimension
  60 x 60 mm
• Contacts Type And Composition
  3 NO
• Fixing Mode
  Hole 0.89 in (22.5 mm) handle
• Width
  2.36 in (60 mm)
• Range
  TeSys
• Rotary Handle Padlocking
  1 to 3 padlocks 0.16…0.31 in (4…8 mm)
• [Uimp] Rated Impulse Withstand Voltage
  6 kV
• [Ith] Conventional Free Air Thermal Current
  20 A
• Net Weight
  0.39 lb(US) (0.177 kg)
• Device Short Name
  VBDN
• Poles Description
  3P
• Suitability For Isolation
  Yes
• [Ue] Rated Operational Voltage
  690 V AC 50/60 Hz
• [Icw] Rated Short-Time Withstand Rms Current
  140 A 400 V 1 s
Tightening Torque
Power circuit 6.20 lbf.in (0.7 N.m) screw clamp terminals
Performance Level
Standard
Rotary Handle Mounting Style
Direct
Product Name
TeSys Mini-VARIO
Control Type
Rotary handle
Marking
0 - 1
Intermittent Duty Class
30
[Icm] Rated Short-Circuit Making Capacity
0.5 kA 400 V at Ipeak
Mechanical Durability
50000 cycles
Network Type
DC AC
Device Composition
Handle Switch
Rated Conditional Short-Circuit Current
6 kA 400 V 20 A aM 6 kA 400 V 20 A gG
Connections - Terminals
Power circuit screw clamp terminals 0.01 in² (4 mm²) flexible - with cable end Power circuit screw clamp terminals 0.01 in² (4 mm²) solid
Electrical Durability
30000 cycles DC-1...5 50000 cycles AC-21
Mounting Support
Handle door Switch door
Making Capacity ( I Rms)
200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A
Breaking Capacity
200 kA 400 V AC-21A) 200 kA 400 V AC-22A) 200 kA 400 V AC-23A)
Rated Operational Power In W
4 kW 230...240 V AC-23A) 5.5 kW 400...415 V AC-23A) 7.5 kW 500 V AC-23A) 11 kW 690 V AC-23A) 3 kW 230...240 V AC-3) 4 kW 400...415 V AC-3) 5.5 kW 500 V AC-3) 5.5 kW 690 V AC-3)
