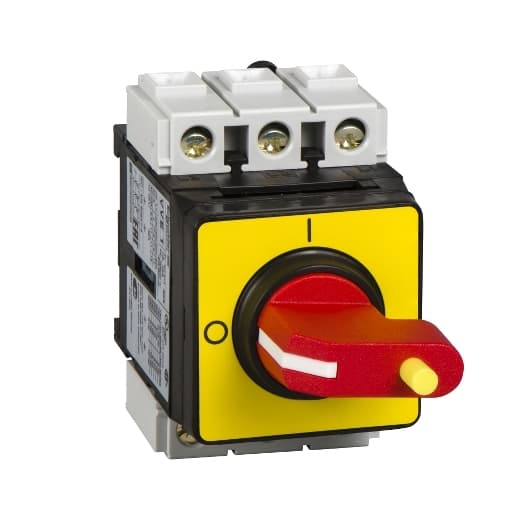

VVE2 Schneider Electric Industrial Automation Components

Product Details

• Product Name
  TeSys VARIO
• Control Type
  Rotary handle
• Number Of Poles
  3P
• Device Short Name
  VVE
• [Icw] Rated Short Time Withstand Current
  480 A 400 V 1 s
• Rotary Handle Padlocking
  1 padlock 0.16…0.24 in (4…6 mm)
• Tightening Torque
  Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals
• Height
  2.91 in (74 mm)
• Contact Type And Composition
  3 NO
• [Uimp] Rated Impulse Withstand Voltage
  8 kV
• Mechanical Durability
  100000 cycles
• Handle Front Plate Color
  Yellow
• Width
  2.17 in (55 mm)
• [Ie] Rated Operational Current
  29 A AC-23 Ue: 400 V
• Suitability For Isolation
  Yes
• Range
  TeSys
• [Ith] Conventional Free Air Thermal Current
  40 A
• Intermittent Duty Class
  30
• Base Dimension
  45 x 45 mm
• Rotary Handle Mounting Style
  Direct
Depth
4.17 in (106 mm)
Performance Level
High performance
[Icm] Rated Short Circuit Making Capacity
1 kA 400 V at Ipeak
Handle Color
Red
[Ue] IEC Rated Operational Voltage
690 V AC 50/60 Hz
Product Weight
0.55 lb(US) (0.25 kg)
Product Type
Emergency stop switch disconnector
Marking
0 - 1
[Ithe] Conventional Enclosed Thermal Current
32 A
Electrical Durability
100000 cycles AC-21 30000 cycles DC-1...5
IEC Terminal Connection
Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
Mounting Method
By clips switch By screws switch
Mounting Support
Switch symmetrical rail Switch plate
Rated Conditional Short Circuit Current
10 kA 400 V 50 A aM 10 kA 400 V 50 A gG
Network Type
AC DC
Device Composition
Switch Handle
Breaking Capacity
320 A 400 V AC-21A) 320 A 400 V AC-22A) 320 A 400 V AC-23A)
Making Capacity ( I Rms)
400 A 400 V AC-21A 400 A 400 V AC-22A 400 A 400 V AC-23A
IEC Rated Operational Power In W
11 kW 690 V AC-3) 15 kW 690 V AC-23A) 11 kW 400...415 V AC-3) 15 kW 500 V AC-3) 18.5 kW 500 V AC-23A) 5.5 kW 230...240 V AC-3) 7.5 kW 230...240 V AC-23A) 15 kW 400...415 V AC-23A)
