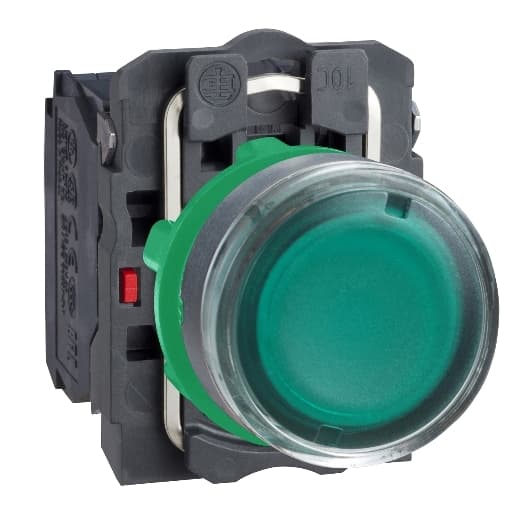

XB5AW33G5 Schneider Electric Industrial Automation Components

Product Details

• Mounting Diameter
  0.87 in (22 mm)
• Light Source
  Protected LED
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• Contacts Material
  Silver alloy (Ag/Ni)
• Head Type
  Standard
• Bulb Base
  Integral LED
• Depth
  2.24 in (57 mm)
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• Current Consumption
  14 mA
• [Us] Rated Supply Voltage
  110...120 V AC 50/60 Hz
• Cap/Operator Or Lens Colour
  Green
• [Uimp] Rated Impulse Withstand Voltage
  6 kV EN/IEC 60947-1
• Bezel Material
  Dark grey plastic
• Sale Per Indivisible Quantity
  1
• Contact Operation
  Slow-break
• Positive Opening
  With EN/IEC 60947-5-1 appendix K
• Tightening Torque
  7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
• Service Life
  100000 h at rated voltage and 25 °C
• Short-Circuit Protection
  10 A cartridge fuse gG EN/IEC 60947-5-1
• Shape Of Signaling Unit Head
  Round
Device Short Name
XB5
Contacts Type And Composition
1 NO + 1 NC
Contacts Usage
Standard contacts
Range Of Product
Harmony XB5
Operator Additional Information
With plain lens
Width
1.18 in (30 mm)
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Surge Withstand
1 kV IEC 61000-4-5
Device Presentation
Complete product
Type Of Operator
spring return
Net Weight
0.12 lb(US) (0.056 kg)
Signalling Type
Steady
Product Or Component Type
Illuminated push-button
Mechanical Durability
10000000 cycles
Supply Voltage Limits
100…132 V AC
Fixing Collar Material
Plastic
Operator Profile
Green flush, unmarked
Height
1.65 in (42 mm)
Operating Force
3.5 N NC changing electrical state 3.8 N
Terminals Description ISO N°1
(13-14)NO (21-22)NC
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted compatible with flat Ø 5.5 mm screwdriver
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
