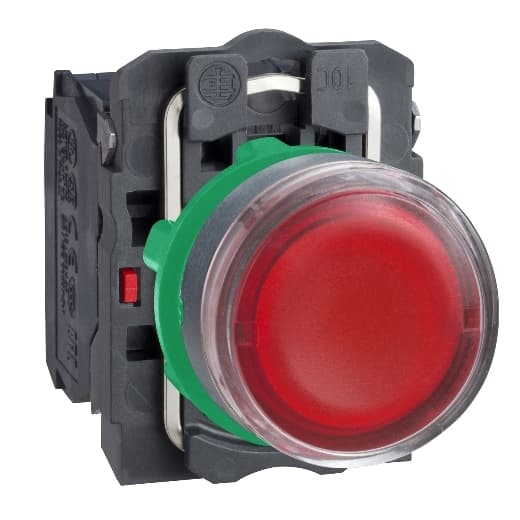

XB5AW34G5 Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Harmony XB5
• Device Short Name
  XB5
• Sale Per Indivisible Quantity
  1
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• Mounting Diameter
  0.87 in (22 mm)
• Operator Additional Information
  With plain lens
• Net Weight
  0.12 lb(US) (0.056 kg)
• Short-Circuit Protection
  10 A cartridge fuse gG EN/IEC 60947-5-1
• Head Type
  Standard
• Contacts Type And Composition
  1 NO + 1 NC
• Contacts Usage
  Standard contacts
• [Ui] Rated Insulation Voltage
  600 V 3)EN/IEC 60947-1
• Service Life
  100000 h at rated voltage and 25 °C
• Contacts Material
  Silver alloy (Ag/Ni)
• Current Consumption
  14 mA
• Product Or Component Type
  Illuminated push-button
• Fixing Collar Material
  Plastic
• Shape Of Signaling Unit Head
  Round
• Light Source
  Protected LED
• Depth
  2.24 in (57 mm)
Signalling Type
Steady
Type Of Operator
spring return
Surge Withstand
1 kV IEC 61000-4-5
Operator Profile
Red flush, unmarked
[Us] Rated Supply Voltage
110...120 V
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Bezel Material
Dark grey plastic
Cap/Operator Or Lens Colour
Red
Bulb Base
Integral LED
Mechanical Durability
10000000 cycles
Supply Voltage Limits
100…132 V AC
Contact Operation
Slow-break
Width
1.18 in (30 mm)
Height
1.65 in (42 mm)
Positive Opening
With EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Device Presentation
Complete product
Tightening Torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Terminals Description ISO N°1
(13-14)NO (21-22)NC
Operating Force
3.5 N NC changing electrical state 3.8 N
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted compatible with flat Ø 5.5 mm screwdriver
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
