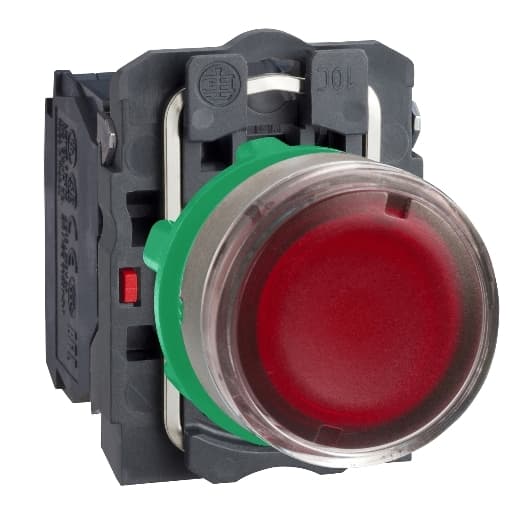

XB5AW34G5C0 Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  XB5
• Shape Of Signaling Unit Head
  Round
• Contact Operation
  Slow-break
• Mounting Diameter
  0.87 in (22 mm)
• Fixing Collar Material
  Plastic
• Bezel Material
  Plastic colour plated grey
• Operator Profile
  Red flush, unmarked
• Operator Additional Information
  With plain lens
• Bulb Base
  Integral LED
• Depth
  2.24 in (57 mm)
• Range Of Product
  Harmony XB5
• Sale Per Indivisible Quantity
  1
• Light Source
  Protected LED
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• Contacts Usage
  Standard contacts
• Head Type
  Standard
• Product Or Component Type
  Illuminated push-button
• Type Of Operator
  spring return
• Contacts Type And Composition
  1 NO + 1 NC
• Cap/Operator Or Lens Colour
  Red
Width
1.18 in (30 mm)
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K
Current Consumption
14 mA
Height
1.65 in (42 mm)
Device Presentation
Complete product
Net Weight
0.12 lb(US) (0.056 kg)
Signalling Type
Steady
Surge Withstand
1 kV IEC 61000-4-5
[Us] Rated Supply Voltage
110...120 V
Mechanical Durability
10000000 cycles
Contacts Material
Silver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Supply Voltage Limits
100…132 V AC
Tightening Torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Service Life
100000 h at rated voltage and 25 °C
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Terminals Description ISO N°1
(13-14)NO (21-22)NC
Operating Force
3.5 N NC changing electrical state 3.8 N
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted flat Ø 5.5 mm
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
