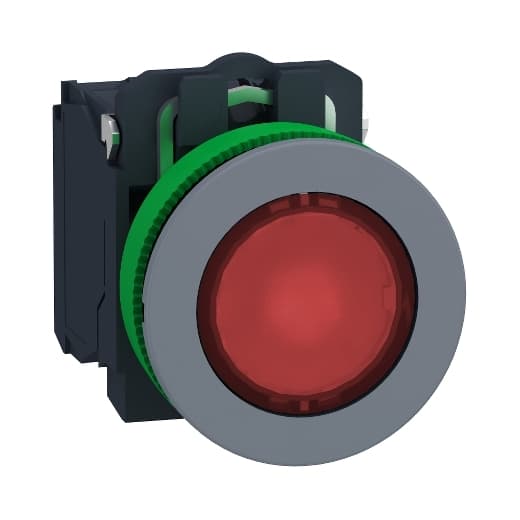

XB5FW34B5C0 Schneider Electric Industrial Automation Components

Product Details

• Contacts Material
  Silver alloy (Ag/Ni)
• Device Short Name
  XB5F
• Bulb Base
  Integral LED
• Device Presentation
  Complete product
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• Surge Withstand
  1 kV IEC 61000-4-5
• Sale Per Indivisible Quantity
  1
• Type Of Operator
  spring return
• Shape Of Signaling Unit Head
  Round
• Head Type
  Built-in-flush
• Light Source
  Protected LED
• Contact Operation
  Slow-break
• Contacts Usage
  Standard contacts
• Width
  1.44 in (36.6 mm)
• Mechanical Durability
  10000000 cycles
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• [Us] Rated Supply Voltage
  24 V
• [Ui] Rated Insulation Voltage
  600 V 3)EN/IEC 60947-1
• Service Life
  100000 h at rated voltage and 25 °C
• Range Of Product
  Harmony XB5
Operator Additional Information
With plain lens
Height
1.65 in (42 mm)
Tightening Torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
Product Or Component Type
Illuminated push-button
Contacts Type And Composition
1 NO + 1 NC
Depth
2.17 in (55 mm)
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Current Consumption
18 mA
Fixing Collar Material
Plastic
Mounting Diameter
1.20 in (30.5 mm)
Cap/Operator Or Lens Colour
Red
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Bezel Material
Plastic colour plated grey
Operator Profile
Red flush, unmarked
Positive Opening
With EN/IEC 60947-5-1 appendix K
Signalling Type
Steady
Terminals Description ISO N°1
(21-22)NC (13-14)NO
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Supply Voltage Limits
19.2…30 V DC 21.6…26.4 V AC
Operating Force
3.5 N NC changing electrical state 3.8 N
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
