BI15-CK40-VP4X2-H1141 W/BS2.1 Turck Industrial Automation Components

BI15-CK40-VP4X2-H1141 W/BS2.1 on Powermatic Associates
Turck

Part#:BI15-CK40-VP4X2-H1141 W/BS2.1

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:1550091

Product Lifecycle:Active

Get a quick Quote!

BI15-CK40-VP4X2-H1141 W/BS2.1 Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI15-CK40-VP4X2-H1141 W/BS2.1 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    223 g
  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Weight
    223 grams
  • Operating Voltage
    65 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Rated switching distance
    15 mm
  • Protection class
    IP67
  • Ambient temperature
    -25…+70 °C
  • Housing material
    Plastic, PBT-GF20-V0, Black
  • Electrical connection
    Connector, M12 × 1
  • Output function
    Complementary contact, PNP
  • Operating voltage
    10…65 VDC
  • Mounting
    Flush
  • Construction size
    65 x 40 x 40 mm, CK40
  • Design
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI15-CK40-VP4X2-H1141 W/BS2.1 Description

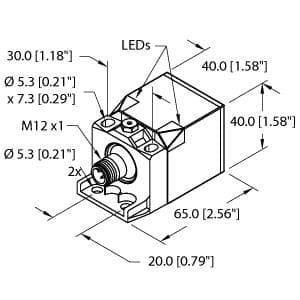

Inductive Sensor, Rated switching distance 15 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, M12 x 1 male connector

Related documents BI15-CK40-VP4X2-H1141 W/BS2.1 Specs

BI15-CK40-VP4X2-H1141 W/BS2.1 English-1630965649520.pdf
