BI22-Q20-RP6X2/S400-S946 Turck Industrial Automation Components

Name: BI22-Q20-RP6X2/S400-S946
Brand: Turck
Price: 165.4 USD
Availability: BackOrder

BI22-Q20-RP6X2/S400-S946 on Powermatic Associates

Part#:BI22-Q20-RP6X2/S400-S946

Alt. Part#:4690236

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

BI22-Q20-RP6X2/S400-S946 Turck - BI22-Q20-RP6X2/S400-S946 Inductive Sensor, With Extended Temperature Range

Product Details

Weight
209 g
Country Of Origin
DEU
HTS Code
8536507000
Housing material
Plastic, PBT-GF30-V0, Yellow
Cable length (L)
3.0 m
Rated switching distance
22 mm
Operating voltage
10…30 VDC

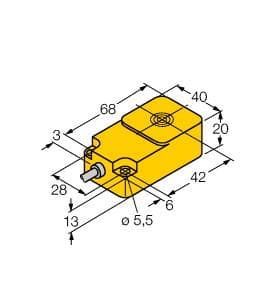

Construction size
68 x 40 x 20 mm, Q20
Ambient temperature
-40…+70 °C
Mounting
Flush
Output function
NC contact, PNP
Protection class
IP67
Design
Rectangular
Electrical connection
Cable
Weight
209 grams
Ambient Temperature
-40 degrees celsius, 70 degrees celsius
Operating Voltage
10 volts, 30 volts
Country of Origin
Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI22-Q20-RP6X2/S400-S946 on Powermatic Associates is $165.40. Order now.

About the product

Inductive Sensor, With Extended Temperature Range, Rated switching distance 22 mm, Cable length (L) 3 m, Flush, Rectangular, height 20 mm, Active face on top, Plastic, PBT-GF30-V0, Temperatures up to -40 °C, DC 3-wire, 10…30 VDC, NC contact, PNP output, Cable connection
