NI4-DS20-2Y1X2-H1140 Turck Inductive Sensors

NI4-DS20-2Y1X2-H1140 on Powermatic Associates
Turck
  • NI4-DS20-2Y1X2-H1140
  • NI4-DS20-2Y1X2-H1140

Part#:NI4-DS20-2Y1X2-H1140

Alt. Part#:1050001

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

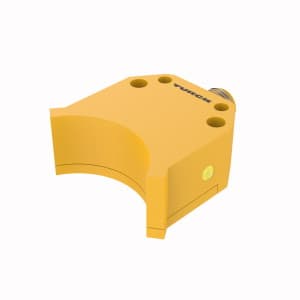

NI4-DS20-2Y1X2-H1140 Turck - NI4-DS20-2Y1X2-H1140 Inductive Sensor, For Rotary Actuators

Product Details

  • Weight
    60 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    60 grams
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Approvals
    ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
  • Housing material
    Plastic, PBT-GF30-V0
  • Electrical connection
    Connector, M12 × 1
  • Mounting
    Non-flush
  • Protection class
    IP67
  • Rated switching distance
    4 mm
  • Ambient temperature
    -25…+70 °C
  • Output function
    NAMUR
  • Construction size

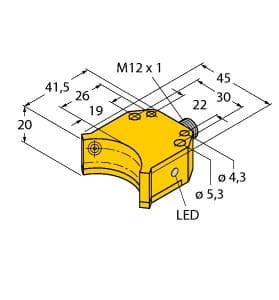

    42 x 45 x 20 mm, DS20
  • Design
    Dual sensor for valve monitoring

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NI4-DS20-2Y1X2-H1140 on Powermatic Associates is $164.00. Order now.

About the product

Inductive Sensor, For Rotary Actuators, Rated switching distance 4 mm, Non-flush, Rectangular, housing DS20, Plastic, PBT‐GF30‐VO, Two switching outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire, nom. 8.2 VDC, 2 outputs acc. to DIN EN 60947-5-6 (NAMUR), M12 x 1 male connector, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

NI4-DS20-2Y1X2-H1140 Related Documents

English-1630965041632.pdf

Manufacturer warranty

NI4-DS20-2Y1X2-H1140 Turck

$164.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$164.00

$164.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Turck

Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
