NI40-CP80-FZ3X2/S10 Turck Industrial Automation Components

Name: NI40-CP80-FZ3X2/S10
Brand: Turck
Price: 565.5 USD
Availability: BackOrder

NI40-CP80-FZ3X2/S10 on Powermatic Associates

Part#:NI40-CP80-FZ3X2/S10

Alt. Part#:13415

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

NI40-CP80-FZ3X2/S10 Turck - NI40-CP80-FZ3X2/S10 Inductive Sensor

Product Details

Weight
375 g
Country Of Origin
DEU
HTS Code
8536507000
Output function
Connection programmable, 2-wire
Protection class
IP67
Housing material
Plastic, PBT-GF30-V0
Electrical connection
Terminal chamber
Construction size
80 x 80 x 41 mm, CP80
Rated switching distance
40 mm
Operating voltage
20…250 VAC / 10…300 VDC
Ambient temperature
-25…+70 °C
Design
Rectangular
Mounting
Non-flush
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Operating Voltage
10 volts, 20 volts, 250 volts, 300 volts
Weight
375 grams
Country of Origin
Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NI40-CP80-FZ3X2/S10 on Powermatic Associates is $565.50. Order now.

About the product

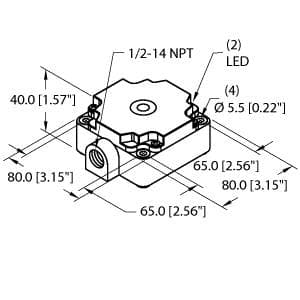

Inductive Sensor, Rated switching distance 40 mm, Non-flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Thread, 1/2-14 NPT, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC/NO programmable, Terminal chamber
