REM-E-195T10C-IOL32B-H1141 Turck Industrial Automation Components
Part#:REM-E-195T10C-IOL32B-H1141
Alt. Part#:100021186
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

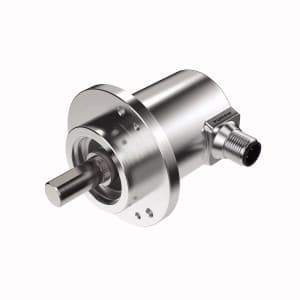

REM-E-195T10C-IOL32B-H1141 Turck - REM-E-195T10C-IOL32B-H1141 Absolute Rotary Encoder - Multiturn, IO-Link, Efficiency Line
Product Details
- Weight 338 g
- Country Of Origin DEU
- HTS Code 9032894000
- Flange diameter Ø 58 mm
- Ambient temperature -20…+70 °C
- Shaft Type Solid shaft
- Protection class shaft IP64
- Flange type Clamping flange
- Technology Magnetic
- Electrical connection Connector, M12 × 1
- Operating voltage 18…30 VDC
- Protection class IP64
- Shaft diameter D [mm] 10 mm
- Communication protocol IO-Link
- Encoder line Efficiency-Line
- Housing material Die-cast zinc
- Output type Absolute multiturn
- Operating Voltage 18 volts, 30 volts
- Ambient Temperature -20 degrees celsius, 70 degrees celsius
- Weight 338 grams
- Country of Origin Germany
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of REM-E-195T10C-IOL32B-H1141 on Powermatic Associates is $735.70. Order now.
About the product
Absolute Rotary Encoder - Multiturn, IO-Link, Efficiency Line, Ø 58 mm clamping flange, Solid shaft, Ø 10mm x 20mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4000 rpm (continuous operation 2000 rpm), Energy harvesting technology, 18….30 VDC, M12 x 1 male connection, 4-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable only to 18 bits over total resolution, default 18 bits, Total resolution 32 bit scalable, default 32 bit
