RI60P2-QR20-LU4X2 Turck Industrial Automation Components
Part#:RI60P2-QR20-LU4X2
Alt. Part#:100001833
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Jun 5, 2025
Product description

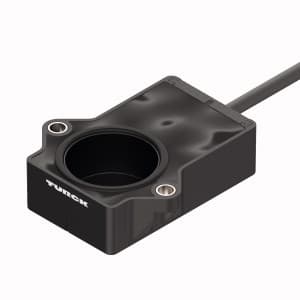

RI60P2-QR20-LU4X2 Turck - RI60P2-QR20-LU4X2 Miniature Encoder, With Analog Output, Premium Line
Product Details
- Weight 169 g
- RoHS Yes
- Country Of Origin DEU
- HTS Code 9031804000
- Weight 169 grams
- Operating Voltage 30 volts, 8 volts
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Country of Origin Germany
- Electrical connection Cable
- Protection class IP68/IP69K
- Ambient temperature -40…+85 °C
- Housing material Plastic, Ultem
- Voltage output 0.5…4.5 V
- Cable length (L) 2.0 m
- Output function Analog output

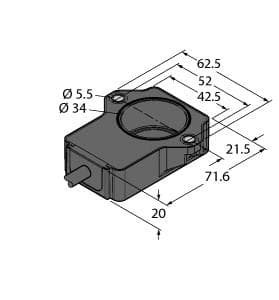

- Construction size 71.6 x 62.6 x 20 mm
- Encoder line Premium-Line
- Flange type Flange without mounting element
- Operating voltage 8…30 VDC
- Technology Contactless
- Measuring range -45…45°
- Output type Absolute singleturn
- Shaft diameter D [mm] 6 mm6.35 mm
- Shaft Type Blind hole shaft
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI60P2-QR20-LU4X2 on Powermatic Associates is $165.70. Order now.
About the product
Miniature Encoder, With Analog Output, Premium Line, Cable length (L) 2 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P2-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
