RES-192SA0C-IOL14B-H1141 Turck Industrial Automation Components

Name: RES-192SA0C-IOL14B-H1141
Brand: Turck
Price: 540.1 USD
Availability: BackOrder

RES-192SA0C-IOL14B-H1141 on Powermatic Associates

Part#:RES-192SA0C-IOL14B-H1141

Alt. Part#:100020144

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

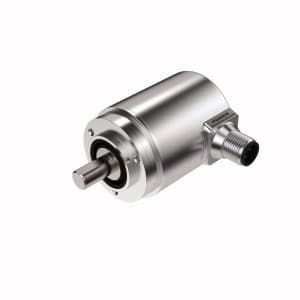

RES-192SA0C-IOL14B-H1141 Turck - RES-192SA0C-IOL14B-H1141 Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line

Product Details

Weight
220 g
Country Of Origin
DEU
HTS Code
9032894000
Output type
Absolute singleturn
Encoder line
Industrial-Line
Flange type
Clamping flange
Protection class
IP67
Flange diameter
Ø 36 mm
Electrical connection
Connector, M12 × 1
Operating voltage
18…30 VDC
Protection class shaft
IP67
Measuring range
0…360°
Housing material
Die-cast zinc
Technology
Magnetic
Ambient temperature
-40…+85 °C
Shaft Type
Solid shaft
Communication protocol
IO-Link
Shaft diameter D [mm]
6.35 mm
Operating Voltage
18 volts, 30 volts
Ambient Temperature
-40 degrees celsius, 85 degrees celsius

Country of Origin

Germany

Weight

220 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RES-192SA0C-IOL14B-H1141 on Powermatic Associates is $540.10. Order now.

About the product

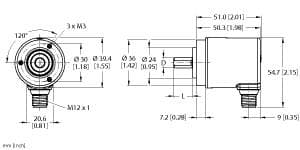

Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line, Clamping flange, Ø 36 mm, Solid shaft, Ø 6.35mm × 12.5mm, Magnetic measuring principle, Shaft material: stainless steel, IP67 rated on the shaft side, ‐40…+85 °C, Max. 4000 rev/min, , 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , 360° resolved in 14 bit (16384 positions)
