RI60P1-QR20-LU4X2-0.24-AMP01-3P Turck Encoders

RI60P1-QR20-LU4X2-0.24-AMP01-3P on Powermatic Associates
Turck
  • RI60P1-QR20-LU4X2-0.24-AMP01-3P
  • RI60P1-QR20-LU4X2-0.24-AMP01-3P

Part#:RI60P1-QR20-LU4X2-0.24-AMP01-3P

Alt. Part#:100000197

Manufacturer:Turck

Category:Encoders

Product Lifecycle:Active

Product description

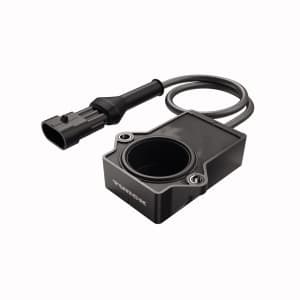

Miniature Encoder, With Analog Output, Premium Line, Cable length (L) 0.24 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray a

Product Details

  • Weight
    121 g
  • RoHS
    Yes
  • HTS Code
    8536507000
  • Output type
    Absolute singleturn
  • Electrical connection
    Cable with connector, AMP Superseal
  • Construction size

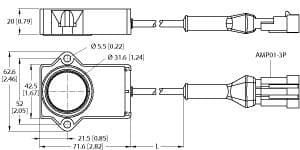

    71.6 x 62.6 x 20 mm
  • Output function
    Analog output
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Protection class
    IP68/IP69K
  • Technology
    Contactless
  • Operating voltage
    8…30 VDC
  • Voltage output
    0.5…4.5 V
  • Flange type
    Flange without mounting element
  • Measuring range
    -30…30°
  • Housing material
    Plastic, Ultem
  • Shaft Type
    Blind hole shaft
  • Ambient temperature
    -40…+85 °C
  • Cable length (L)
    0.240  m
  • Encoder line
    Premium-Line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI60P1-QR20-LU4X2-0.24-AMP01-3P on Powermatic Associates is $165.70. Order now.

About the product

Turck RI60P1-QR20-LU4X2-0.24-AMP01-3P is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft that is washdown-resistant, making it suitable for harsh environments. This sensor is part of the Q-track QR20 series and comes in a rectangular shape with dimensions of H63mm x W72mm x D20mm. It offers a high degree of protection with IP68 and IP69K ratings, ensuring durability against dust and water ingress. The sensor is powered by a supply voltage ranging from 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and it connects via a pre-wired 24cm pigtail terminated with a 3-pin connector. The housing is made of Plastic Ultem, and it features a 6mm bore size. For protection, it includes short-circuit and reverse polarity safeguards. The sensor provides one analog output (0.5Vdc-4.5Vdc) and boasts a resolution of ≤0.09° with a 12-bit resolution. It has a green LED for visual position indication and power status, a sampling rate of 800Hz, and supports angular positions from 0° to +60°. The current consumption is 100mA, ensuring efficient operation.

RI60P1-QR20-LU4X2-0.24-AMP01-3P Related Documents

English-1630965854290.pdf
