RM-100C10E-3C13S16M-H1181 Turck Industrial Automation Components

RM-100C10E-3C13S16M-H1181 on Powermatic Associates
Turck

Part#:RM-100C10E-3C13S16M-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

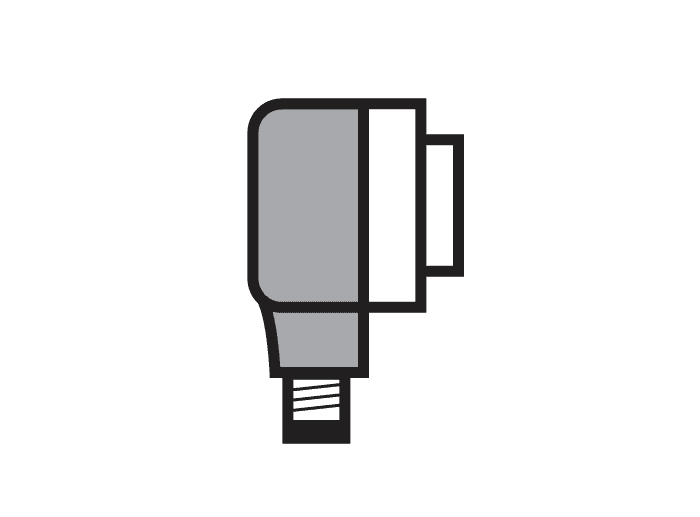

RM-100C10E-3C13S16M-H1181 Turck - RM-100C10E-3C13S16M-H1181 Absolute Rotary Encoder - Multiturn, Industrial Line

Product Details

  • Shaft Type
    Blind hole shaft
  • Protection class shaft
    IP65
  • Shaft diameter D [mm]
    10  mm
  • Communication protocol
    SSi
  • Flange type
    Flange with stator coupling
  • Technology
    Magnetic
  • Housing material
    Die-cast zinc
  • Operating voltage
    10…30 VDC
  • Flange diameter
    Ø  46  mm
  • Output type
    Absolute multiturn
  • Ambient temperature
    -40…+85 °C
  • Encoder line
    Industrial-Line
  • Electrical connection
    Connector, M12 × 1
  • Protection class
    IP67
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Absolute Rotary Encoder - Multiturn, Industrial Line, Flange with slotted flex mount, Ø 46 mm, Hollow shaft, Ø 10mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP65 on shaft side, -40…+85 °C, Max. 6000 rpm, 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , Singleturn, 13-bit resolution, Multiturn, 16-bit resolution
