RU40U-EM18E-LIU2PN8X2T-H1151/3GD Turck Industrial Automation Components

RU40U-EM18E-LIU2PN8X2T-H1151/3GD on Powermatic Associates
Turck
  • RU40U-EM18E-LIU2PN8X2T-H1151/3GD
  • RU40U-EM18E-LIU2PN8X2T-H1151/3GD

Part#:RU40U-EM18E-LIU2PN8X2T-H1151/3GD

Alt. Part#:1610071

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

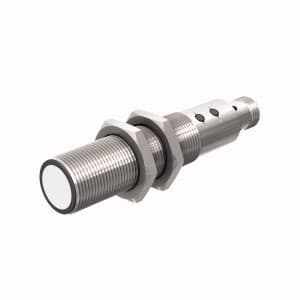

RU40U-EM18E-LIU2PN8X2T-H1151/3GD Turck - RU40U-EM18E-LIU2PN8X2T-H1151/3GD Ultrasonic Sensor, Diffuse Mode Sensor

Product Details

  • Weight
    91 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Range
    25…400 mm
  • Switching element function
    NO/NC
  • Radiation direction
    straight
  • Current output
    4…20 mA
  • Operating voltage
    15…30 VDC
  • Housing quality
    1.4404 (AISI 316L)
  • Communication protocol
    IO-Link
  • Function
    Proximity
  • Output function
    PNP/NPN, analog output
  • Housing material
    Stainless steel
  • Special features
    Synchronization, Pushbutton
  • Voltage output
    0…10 V
  • Electrical connection
    Connector, M12 × 1
  • Design
    Threaded barrel
  • Construction size
    M18 x 1
  • Approvals
    ATEX II 3 GD
  • Protection class
    IP67
  • Ambient temperature
    -25…+45 °C
  • Ambient Temperature
    45 degrees celsius
  • Country of Origin
    Germany
  • Weight
    91 grams
  • Operating Voltage
    15 volts, 30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RU40U-EM18E-LIU2PN8X2T-H1151/3GD on Powermatic Associates is $662.90. Order now.

About the product

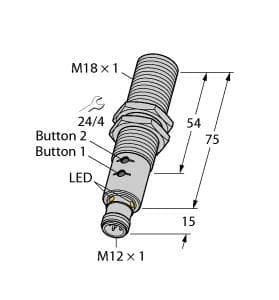

Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Teach range adjustable via pushbutton or adapter, Temperature compensation, Blind zone: 2.5 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, 1 × switching output, PNP/NPN, 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO-link, ATEX II 3 G approval, Gases and vapors, Group IIC, Zone 2, Dust, Group IIIC, Zone 22, When used in hazardous areas, the special conditions of the approval must be observed, SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable

RU40U-EM18E-LIU2PN8X2T-H1151/3GD Related Documents

English-1630965813142.pdf
