TB-8M8M-4-5/S101 Turck Industrial Automation Components

TB-8M8M-4-5/S101 on Powermatic Associates
Turck
  • TB-8M8M-4-5/S101
  • TB-8M8M-4-5/S101

Part#:TB-8M8M-4-5/S101

Alt. Part#:UX13909

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

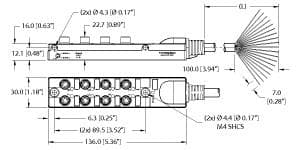

TB-8M8M-4-5/S101 Turck - TB-8M8M-4-5/S101 Junction Box - Actuator/Sensor, 8-port, Extension Cable

Product Details

  • Weight
    1000 g
  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8536908530
  • Weight
    1000 grams
  • Country of Origin
    Czechia
  • Number of ports
    8
  • Approvals
    CE, RoHS
  • Housing material
    Plastic, PA 6 GF30
  • Voltage
    30 volts
  • Homerun Exit Location
    Side exit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TB-8M8M-4-5/S101 on Powermatic Associates is $195.00. Order now.

About the product

Junction Box - Actuator/Sensor, 8-port, Extension Cable, Cable length (L) 5 m, Housing material: Nylon, Housing color: Black, Fully encapsulated, Protection class: IP67, IP68, IP69, IP69K; NEMA 1, 3, 4, 6P, 12, RoHS compliant, CE compliant, I/O port: 4-pin, Flexlife™ Cable, Black TPE jacket, 19X22 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Flexlife® and C-Track Approved, Cable length: 5 m

TB-8M8M-4-5/S101 Related Documents

English-1630968253397.pdf
