2001-1321/1000-434 WAGO Terminal Blocks
Part#:2001-1321/1000-434
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

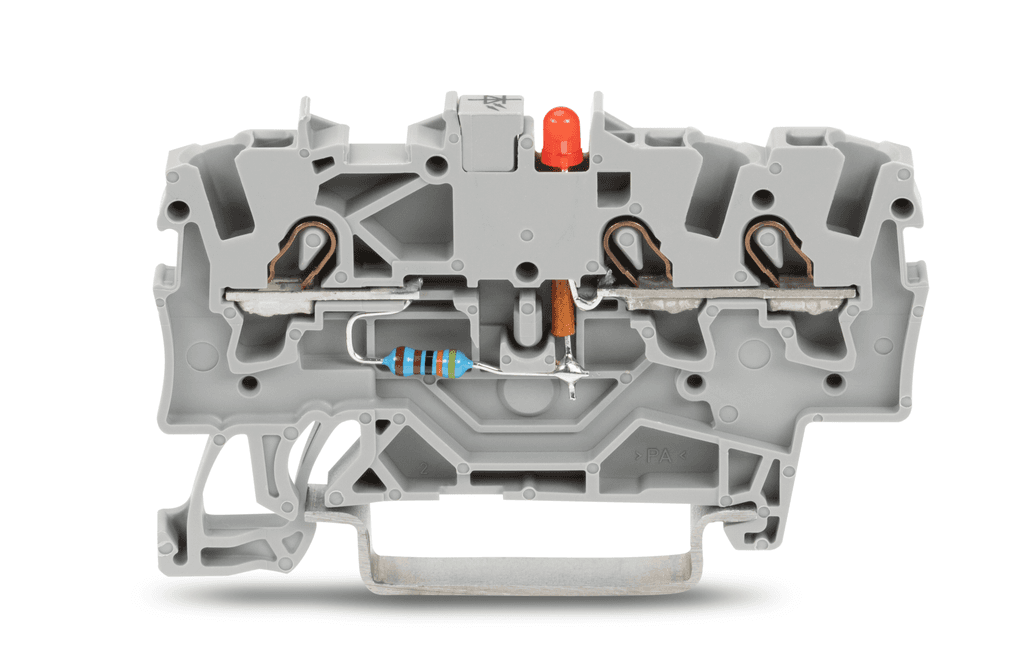

2001-1321/1000-434 WAGO - LED terminal block; red LED (PN); 24 VDC; rail mount; 3-conductor; 4.2 mm wide; gray
Product Details
- Weight 5.200001368 g
- Country Of Origin Germany
- HTS Code 85369010000
- Height 2.33 inches, 59.2 millimeters
- Insulation Material Polyamide
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Weight 5.200 grams
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Flammability Class V0
- Current 0.025 amperes
- Color Gray
- Package Type Box
- Conductor Material Copper
- Mounting Type DIN-35 Rail
- Country of Origin Germany
- Width 0.165 inches, 4.2 millimeters
- Strip Length 0.43 inches, 11 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2001-1321/1000-434 on Powermatic Associates is $11.37. Order now.
About the product
Wago 2001-1321/1000-434 is a terminal designed for component feed-through/thru terminal block applications, featuring push-in CAGE CLAMP spring connections for efficient assembly. It operates with a supply voltage of 24Vdc, indicated by a red LED, and supports a rated current of 0.025A according to IEC standards and 15A according to UL standards. This terminal is designed with a single deck/level and includes Normally Open (NO) auxiliary contacts with the anode on the right side. It has a net width of 4.2 mm and accommodates 1 disconnect feed-through pole (1P). The terminal is suitable for mounting on DIN-35 rails, with dimensions of H59.2mm x W4.2mm x D32.9mm. It is compatible with cross-sections ranging from 0.25mm2 to 2.5mm2 for fine stranded or solid conductors, and #22AWG to #14AWG, with a nominal cross-section of 1.5mm2. Constructed from Polyamide (PA) 66, this terminal can connect up to 3 wires (1 push-in + 2 push-in) and operates at a rated voltage of 800V according to IEC standards and 600V according to UL standards. It is part of the TOPJOB S series and comes in gray.
