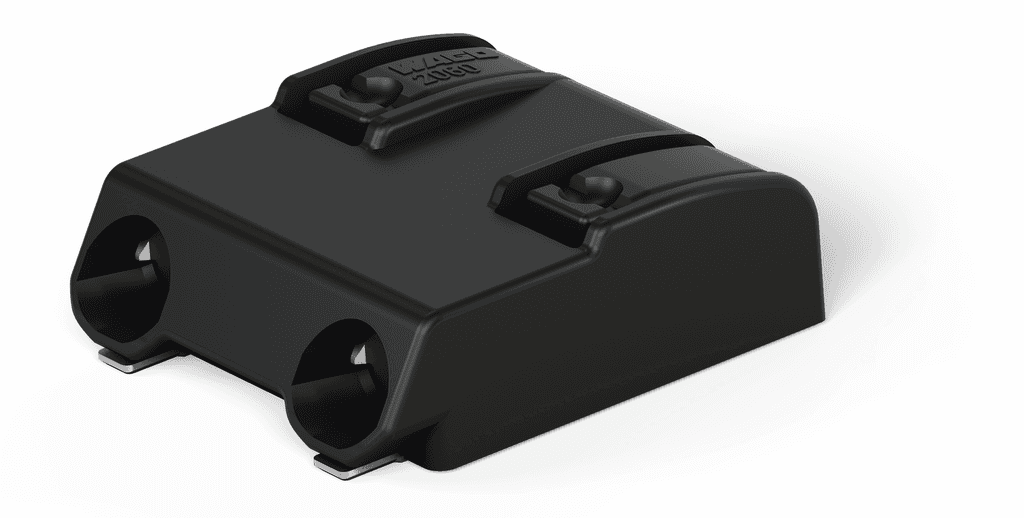

2060-872/998-404 WAGO Terminal Blocks

WAGO 2060-872/998-404 is a component suitable for lead-free reflow soldering profiles per DIN EN 61760-1 and IEC 60068-2-58, with a maximum peak temperature of 260°C. It features a short circuit breaking rating and application notes that recommend trial runs to ensure compatibility under actual manufacturing conditions. The part has a nominal voltage of 400V, 630V, and 1000V under IEC/EN 60664-1 standards, with a rated impulse voltage of 6kV and a rated current of 9A. It supports a connection technology of Push-in CAGE CLAMP with push-button actuation and accommodates solid and fine-stranded conductors ranging from 0.2 to 0.75mm2 (24 to 18 AWG), including fine-stranded conductors with insulated or uninsulated ferrules. The strip length for connection is 7 to 9mm, and the conductor connection direction to PCB is 0°. This part has a pin spacing of 8mm, dimensions of 11.9mm in width, 4.5mm in height, and 13.1mm in depth, and is designed for SMD PCB contact with an in-line solder pin arrangement. It is made from Polyphthalamide (PPA GF) with a flammability class of V0, and the contact material is a copper alloy with tin plating. The part weighs 0.6g and has a moisture sensitivity level (MSL) of 1. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemption, and comes in a box packaging with a quantity of 6750 pieces per box. The country of origin is CH, and it has a GTIN of 4055143251167 with a customs tariff number of 85369010000.
