2061-902 WAGO Industrial Automation Components

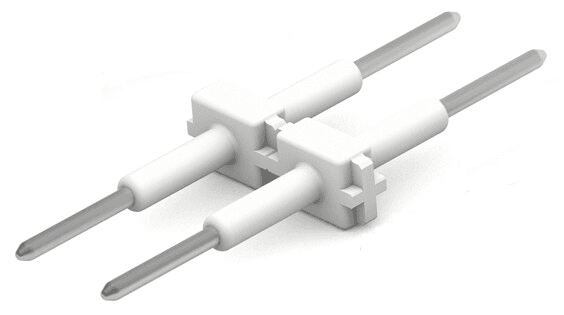

WAGO 2061-902 is an SMD PCB terminal block designed for a nominal voltage of 250V (III/3), 320V (III/2), and 630V (II/2) with a rated impulse voltage of 4kV across all categories. It supports a rated current of 9A and adheres to overvoltage category III / Pollution degree 2. This terminal block features a total of 2 potentials, with a 2-pole connection on Connection 1. It has a pin spacing of 6mm, a width of 11.7mm, a height of 2.5mm, and a depth of 30mm. The mechanical data indicates a maximum of 10 mating cycles, specifically designed for SMD PCB terminal blocks in the 2061 Series. The white terminal block is made from Polyamide (PA66) in the insulation, with a flammability class of V0, and uses a copper alloy for the contact material with a silver plating. It weighs 0.6g and can operate within a temperature range of -60 to +105°C. The product is RoHS compliant without exemptions, packaged in boxes of 300 pieces, and has a GTIN of 4055143656832. Its country of origin is China, with a customs tariff number of 85369010000.
