2070-452/998-406 WAGO Industrial Automation Components

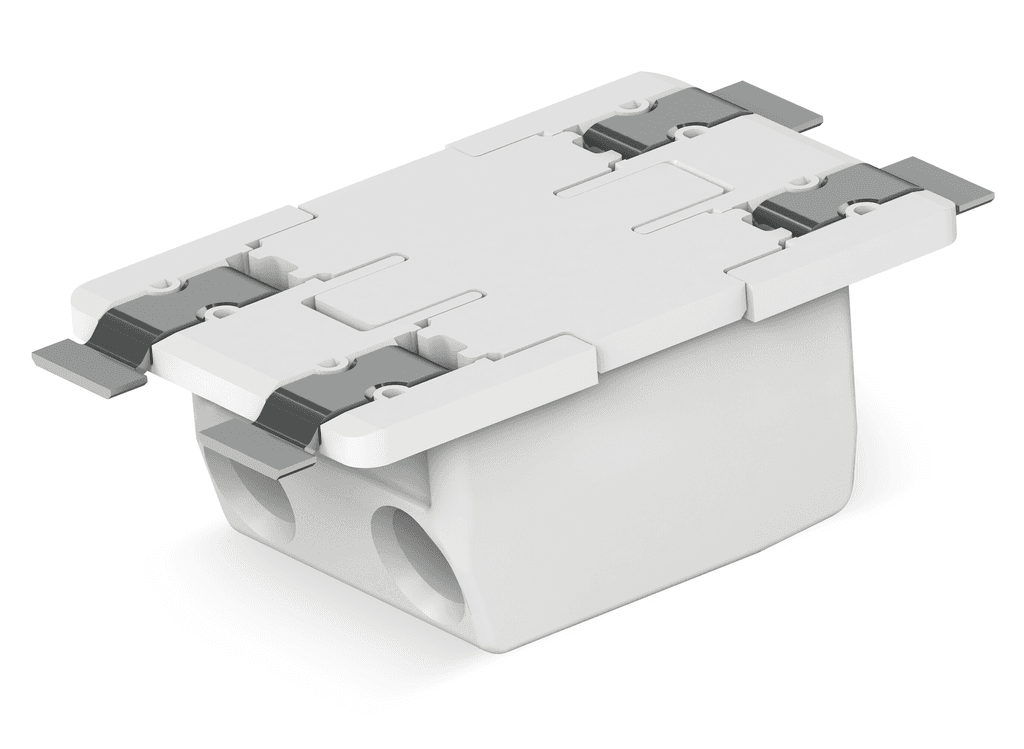

WAGO 2070-452/998-406 is an automation part designed for FR4 and metal-core PCBs, with electrical ratings according to IEC/EN 60664-1. It features a nominal voltage of 320V for overvoltage category III/3 and pollution degree 3, and 630V for category II/2, with a rated impulse voltage of 4kV across all categories. For metal-core PCBs, the rated voltages are 200V (III/3), 320V (III/2), and 500V (II/2), with a consistent rated surge voltage of 4kV. The part supports a rated current of 9A and complies with UL 1977 standards, offering a rated voltage of 600V and a rated current of 9A. It accommodates two connection points and potentials, with a single connection type and level, utilizing Push-in CAGE CLAMP technology for solid and fine-stranded conductors ranging from 0.2 to 0.75mm2 (24 to 18 AWG) and a strip length of 8 to 10mm. The part is designed for through-board mounting without a cover, featuring SMD PCB contacts with an in-line solder pin arrangement and two solder pins per potential. It is made from white Polyphthalamide (PPA GF) with a flammability class of UL94 V0, copper alloy contacts, and tin plating, weighing 2g. The part operates within a temperature range of -60 to +105°C, is RoHS compliant without exemption, and comes in a box packaging with a quantity of 2385 pieces per box. The country of origin is CH, with a GTIN of 4055143645171 and a customs tariff number of 85369010000.
