2091-1432 WAGO Industrial Automation Components

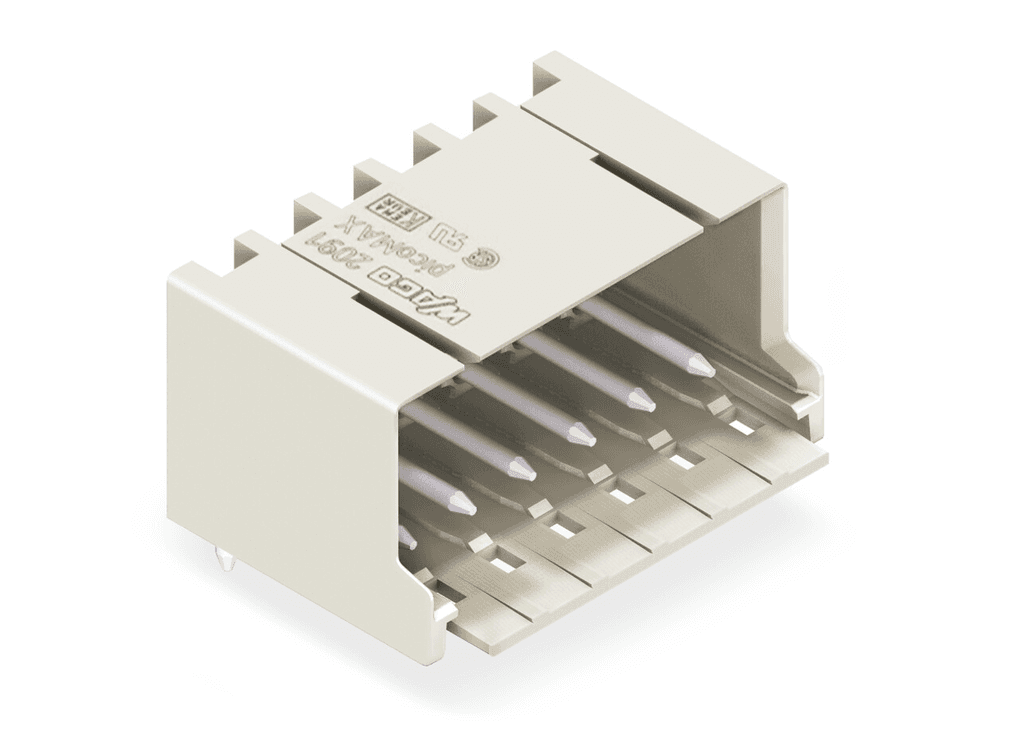

WAGO 2091-1432 is a picoMAX Pluggable Connection System connector designed for PCB applications, featuring a male connector/plug type without mismating protection but includes a locking latch for secure connection. It has a total of 12 potentials, with a single connection type and level, and a pole number of 12. The connector has a pin spacing of 3.5mm, dimensions of 44mm in width, 16mm in height, and 17.5mm in depth, with a height from the surface of 12.4mm. The solder pin length is 3.6mm with a diameter of 1mm, and it requires a drilled hole diameter of 1.2mm (+0.1mm tolerance). It features variable coding, anti-rotation protection, and allows plugging without loss of pin spacing, with a mating direction to the PCB of 0°. The connector is made from light gray Polyphthalamide (PPA GF) with a flammability class of V0, and the contacts are made from Electrolytic Copper (ECu) with tin plating. It operates within a temperature range of -60 to +100°C and has a processing temperature range of -35 to +60°C. The connector is RoHS compliant, with a weight of 4g, and is sold in boxes of 100 pieces. Its electrical specifications include a nominal voltage of 160V to 320V, a rated impulse voltage of 2.5kV, and a rated current of 10A, with approvals per IEC/EN 60664-1 and UL 1059. The product is manufactured in Germany, with a GTIN of 4050821161141 and a customs tariff number of 85366930000.
