2092-3505/002-000 WAGO Electrical Connector Accessories

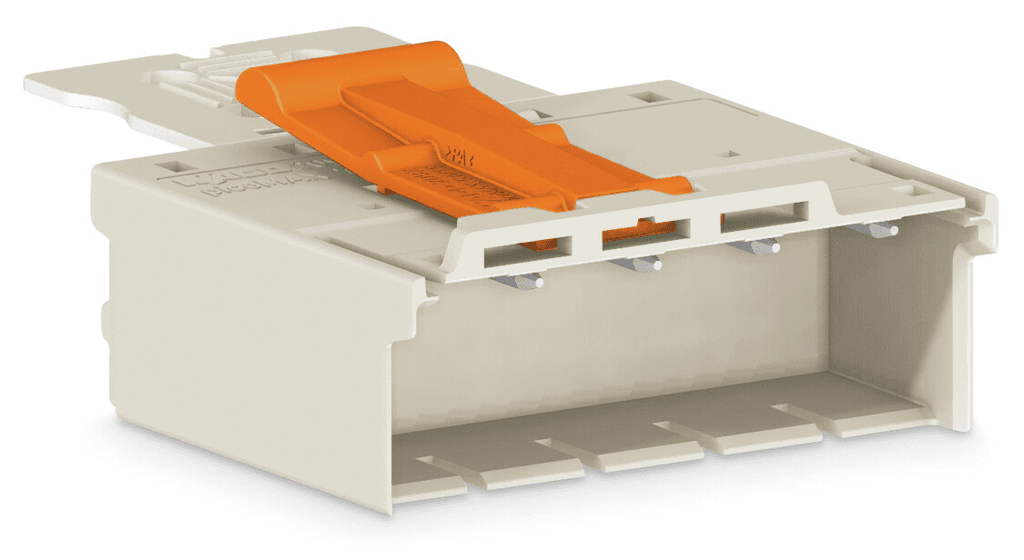

WAGO 2092-3505/002-000 is a picoMAX Pluggable Connection System connector designed for use in applications as specified by DIN EN 61984, featuring a non-breaking capacity. It operates with nominal voltages of 400V (III/3), 630V (III/2), and 1000V (II/2), with a rated impulse voltage of 6kV across these categories. The rated current is 16A according to IEC/EN standards, and under UL 1059 approvals, it has rated voltages of 300V and rated currents of 15A (Use Group B) and 10A (Use Group D). This connector accommodates 5 connection points and potentials, with a single connection type and level. The push-in CAGE CLAMP connection technology is activated by a push-button, allowing for operation parallel to conductor entry. It accepts solid and fine-stranded conductors ranging from 0.2 to 2.5mm2 (24 to 12 AWG), with specific allowances for fine-stranded conductors with insulated or uninsulated ferrules. The strip length for connection is 9 to 10mm, and it features a 5-pole configuration. Physically, the connector has a pin spacing of 7.5mm, dimensions of 37.2mm in width, 18.2mm in height, and 56.8mm in depth, and is designed with gripping plate, anti-rotation protection, and a locking latch for secure connection. The male connector/plug is made from light gray Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and the contacts are tin-plated Electrolytic Copper (ECu). It operates within a temperature range of -60 to +100°C, has a fire load of 0.05MJ, and weighs 12.9g. This product is RoHS compliant, packaged in boxes of 50 pieces, and manufactured in Germany with a GTIN of 4050821164821.
