2104-1207 WAGO Industrial Automation Components

2104-1207 on Powermatic Associates
WAGO

Part#:2104-1207

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

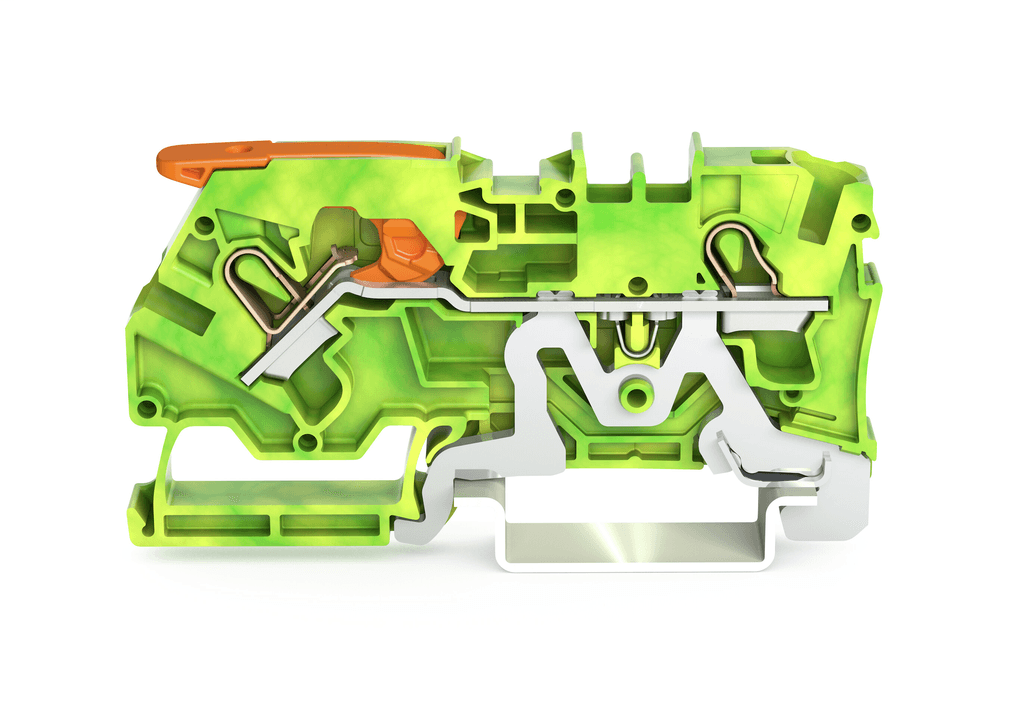

2104-1207 WAGO - 2-conductor ground terminal block; with lever and Push-in CAGE CLAMP®; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; green-yellow

Product Details

  • Actuator
    Lever
  • Strip Length
    0.51 inches, 13 millimeters
  • Operating Temperature
    105 degrees celsius
  • Country of Origin
    Poland
  • Flammability Class
    V0
  • Mounting Type
    DIN-35 Rail
  • Insulation Material
    Polyamide
  • Color
    Green, Yellow
  • Weight
    15.973 grams
  • Conductor Material
    Copper
  • Conductor Size
    10 american wire gauge, 6 millimeters
  • Width
    0.244 inches, 6.2 millimeters
  • Height
    2.783 inches, 70.7 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2104-1207 on Powermatic Associates is $9.63. Order now.

About the product

Wago 2104-1207 is a ground/earthing terminal block designed for push-in CAGE CLAMP spring connections. It features a 1-deck/level design with a lever, side and center marking slot, and a test port. The terminal is rated for an impulse voltage of 6.2 mm and has a net width for 1 grounding / protective-earth (1PE). It is suitable for mounting on DIN-35 rail (35 x 15 / 35 x 7.5) and exhibits a green-yellow color scheme with an orange actuator. The terminal block has dimensions of H70.7mm x W6.2mm x D32.9mm and accommodates 0.5mm2 to 6mm2 fine stranded or solid conductors, as well as #20AWG to #10AWG fine stranded or solid conductors, with a 4mm2 nominal cross-section. The construction material is Polyamide (PA) 66. It supports 2-wires (1 push-in + 1 push-in) (1+1) connections and is part of the TOPJOB S series.
