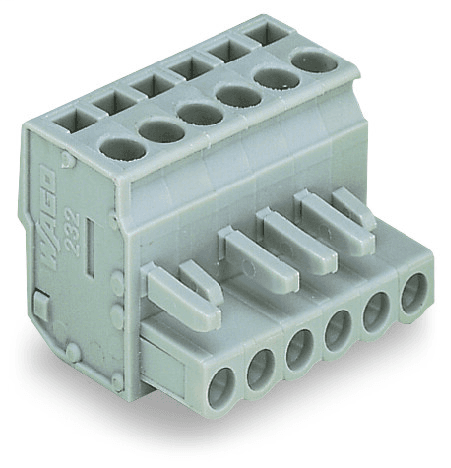

232-221/026-000 WAGO Industrial Automation Components

WAGO 232-221/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V (III/3), 320V (III/2), and 630V (II/2), and a rated impulse voltage of 4kV across these categories. The rated current is 14A according to IEC/EN standards. Under UL 1059 and UL 1977, it has a rated voltage of 300V for Use Group B and D, with respective currents of 15A and 10A, and a 600V rating with a 15A current under UL 1977. CSA approvals mirror the UL ratings for voltage and current. This part features 21 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including those with insulated or uninsulated ferrules. The physical dimensions include a pin spacing of 5mm, width of 107.4mm, height of 19.9mm, and depth of 22.75mm. It is designed with angled orientation, variable coding, and anti-rotation protection but lacks mismating protection and locking features. The connector is made from gray Polyamide (PA66), with a chrome-nickel spring steel clamping spring, copper alloy contacts, and tin plating. It has a flammability class of UL94 V0, weighs 39.2g, and can operate within a temperature range of -60 to +85°C. The product is RoHS compliant, packaged in boxes of 10, and manufactured in Poland with a GTIN of 4044918388573.
