232-588/007-000 WAGO Industrial Automation Components

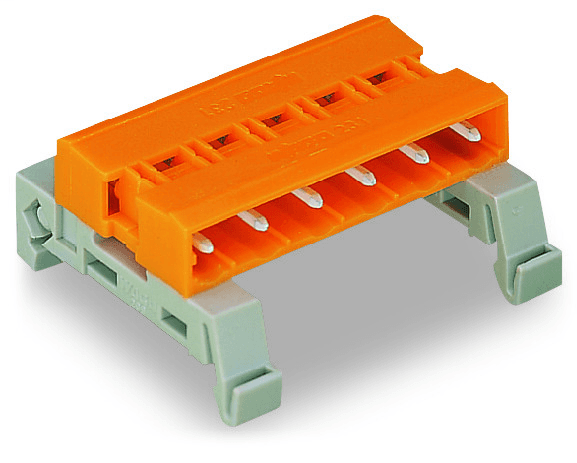

WAGO 232-588/007-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV for all categories. The rated current is 12A. For UL standards, it has a rated voltage of 300V and 600V with rated currents of 15A and 10A depending on the use group, and it is CSA approved with similar ratings. This connector supports 8 potentials, has a single connection type across one level, and accommodates an 8-pole configuration. Physically, it features a pin spacing of 7.62mm, dimensions of 61.34mm in width, 25.9mm in height, and 42.5mm in depth, with a mounting type for DIN-35 rail and variable coding for anti-rotation protection. The connector is orange, made from Polyamide (PA66) with a UL94 V0 flammability class, and uses tin-plated electrolytic copper contacts. It has a fire load of 0.216MJ and weighs 9.6g. The operational temperature range is -60 to +100°C, with a processing temperature range of -35 to +60°C. Packaged in boxes of 10, it is manufactured in Germany, RoHS compliant without exemptions, and has a GTIN of 4045454340629 with a customs tariff number of 85366930000.
