232-866/047-000 WAGO Industrial Automation Components

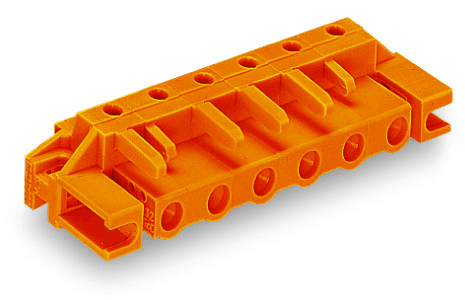

WAGO 232-866/047-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 12A. UL and CSA approvals include ratings of 300V and 600V with currents of 15A and 10A depending on the use group. It features a total of 6 potentials, a single connection type, and one level, with a pole number of 6 for connection 1. The physical specifications include a pin spacing of 7.62mm, dimensions of 57.98mm in width, 16.6mm in height, 18.25mm in depth, and a solder pin length of 5mm. It offers variable coding, multiple mounting options including mounting flange and panel mounting, and anti-rotation protection. The connector type is a female socket for PCB with THT PCB contact and tin-plated copper alloy contacts. The insulation material is Polyamide (PA66) with a flammability class of UL94 V0. It operates within a temperature range of -60 to +85°C and is RoHS compliant. The product is orange, weighs 7.4g, and comes in a box of 25 pieces, with its country of origin being Germany.
