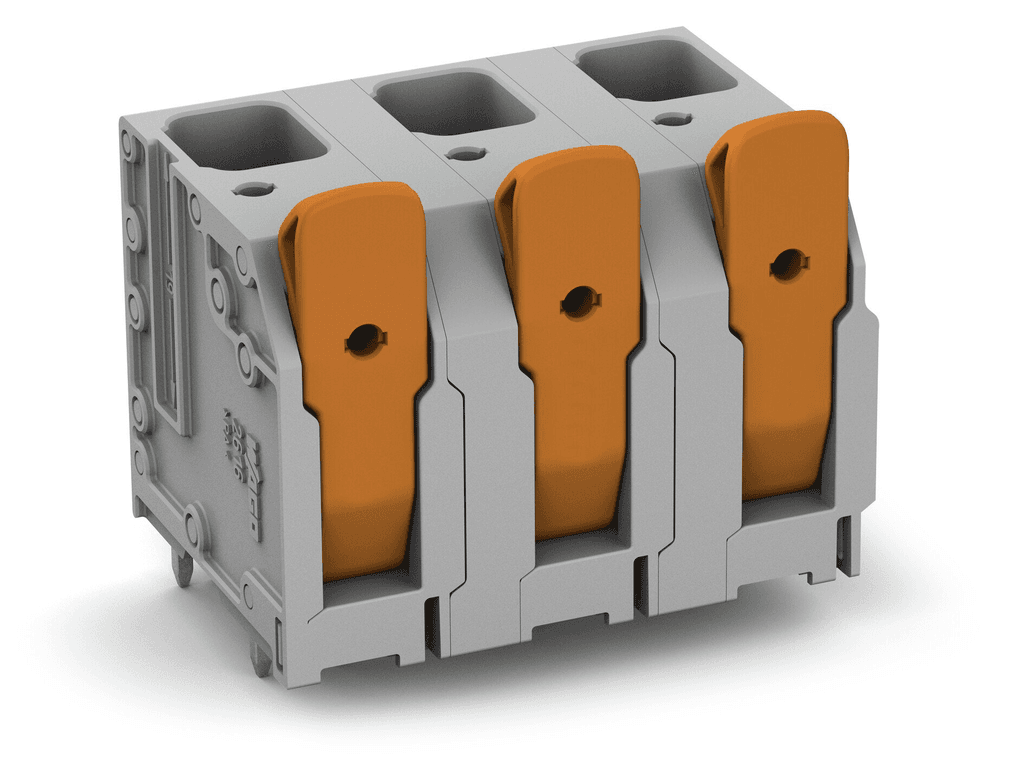

2616-3354 WAGO Terminal Blocks

WAGO 2616-3354 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 800V (III/3) and 1000V (II/2, III/2), with rated impulse voltages of 8kV for both overvoltage categories III/2 and III/3. The rated current is 76A according to IEC/EN standards. Under UL 1059 approvals, it has rated voltages of 300V for Use Groups B and C, and 600V for Use Group D, with corresponding rated currents of 78A for Groups B and C, and 5A for Group D. CSA approvals mirror these specifications with slight variations in rated currents. The part includes 4 connection points, supports a single connection type across one level, and utilizes Push-in CAGE CLAMP technology with lever actuation. It accommodates solid and fine-stranded conductors ranging from 0.75 to 25mm2 (18 to 4 AWG), with specific capacities for ferruled conductors. The strip length for connections is between 18 to 20mm, and the conductor connection direction to PCB is 90 degrees. Physically, it has a pin spacing of 15mm, dimensions of 56.5mm in width, 38.2mm in height, 29.4mm in depth, and a solder pin length of 4mm. The terminal is made from Polyamide (PA66) in gray, with a flammability class of V0, and features chrome-nickel spring steel for the clamping spring, electrolytic copper contacts with tin plating. It operates within a temperature range of -60 to +105°C, has a fire load of 0.726MJ, and weighs 44g. The product is RoHS compliant, packaged in boxes of 28 pieces, and has a GTIN of 4055143860543.
