280-503/281-581 WAGO Terminal Blocks
Part#:280-503/281-581
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

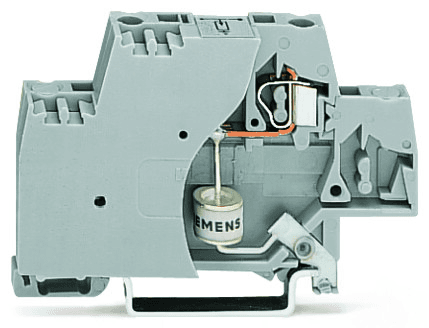

280-503/281-581 WAGO - Terminal block with gas-filled surge arrester and end plate; with direct connection to DIN rail; 230 VAC/VDC
Product Details
- Weight 12.68100334 g
- Country Of Origin Germany
- HTS Code 85369010000
- Country of Origin Germany
- Weight 12.681 grams
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Mounting Type DIN-35 Rail
- Depth 2.52 inches, 64 millimeters
- Strip Length 0.35 inches, 9 millimeters
- Insulation Material Polyamide
- Color Gray
- Width 0.394 inches, 10 millimeters
- Package Type Box
- Flammability Class V0
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 280-503/281-581 on Powermatic Associates is $38.06. Order now.
About the product
Wago 280-503/281-581 is a terminal designed for component feed-through/thru terminal block applications, featuring CAGE-CLAMP spring connections for secure and efficient wire connection. It supports a rated current of 20A and a rated voltage of 230Vdc, with a design that includes 2 decks/levels for double-deck configuration. This terminal block is equipped with a gas-filled suppressor and a built-in end plate, ensuring the terminal is closed on both sides. It operates with a control voltage of 230Vac and has a rated impulse voltage (Uimp) of 10 mm. The net width accommodates 1 feed-through pole (1P), and it is designed to mount on a DIN-35 rail. The terminal's power consumption is indicated by its gray color, and it has dimensions suitable for 0.08mm2 to 2.5mm2 fine stranded or solid conductors, as well as for #28AWG to #14AWG fine stranded or solid conductors. The cross-section is made of Polyamide (PA) 66, and it features normally closed (NC) auxiliary contacts with a 2-wires configuration (1 clamp + 1 clamp) (1+1), with overall dimensions of H39.5mm x W10mm x D64mm.
