280-572/281-434 WAGO Terminal Blocks
Part#:280-572/281-434
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

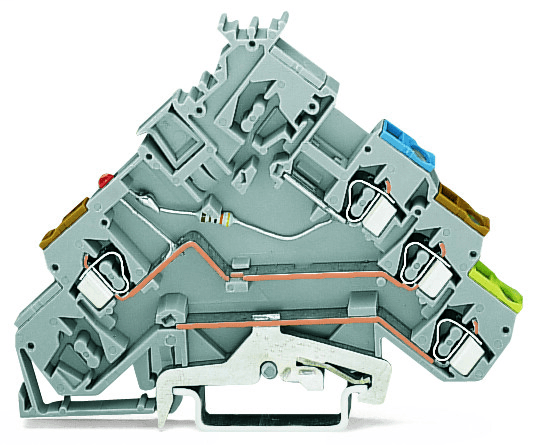

280-572/281-434 WAGO - 3-conductor actuator supply terminal block; LED (red); with ground contact; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 18.10000476 g
- Country Of Origin Germany
- HTS Code 85369010000
- Weight 18.100 grams
- Width 0.197 inches, 5 millimeters
- Strip Length 0.35 inches, 9 millimeters
- Package Type Box
- Operating Temperature 105 degrees celsius
- Mounting Type DIN-35 Rail
- Height 3.563 inches, 90.5 millimeters
- Flammability Class V0
- Current 20 amperes
- Insulation Material Polyamide
- Country of Origin Germany
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Conductor Material Aluminum, Copper
- Color Gray
- Actuator Operating Tool
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 280-572/281-434 on Powermatic Associates is $18.02. Order now.
About the product
Wago 280-572/281-434 is a terminal block designed for actuation supply with a supply voltage of 24Vdc indicated by a red LED. It features CAGE-CLAMP spring connections for securing wires and supports a rated current of 20A according to IEC standards, and 15A according to UL and CSA standards. This quadruple-deck terminal block is designed with ground contact and colored wire entry for easy identification. It accommodates a rated impulse voltage of 5 mm and is suitable for 0.08mm^2 to 2.5mm^2 fine stranded or solid conductors, as well as #28AWG to #12AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66, ensuring compatibility with 4-wires (4 clamps) and is designed to be mounted on a DIN-35 rail. The dimensions are H90.5mm x W5mm x D63.5mm, and it is designed for a control voltage of 24 V (UL) and 300 V (CSA).
