280-805 WAGO Terminal Blocks
Part#:280-805
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

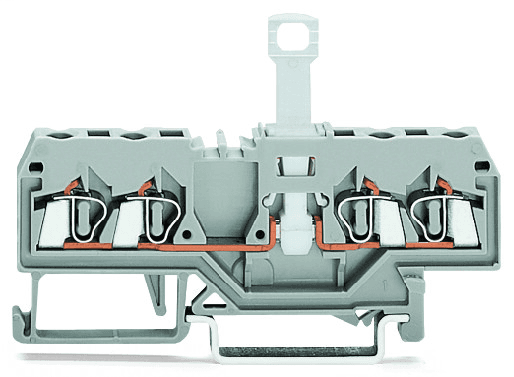

280-805 WAGO - Disconnect terminal block; center marking; 4-conductor; 5 mm wide; orange
Product Details
- Weight 9.327002453 g
- Country Of Origin Germany
- HTS Code 85365080900
- Flammability Class V0
- Width 0.197 inches, 5 millimeters
- Conductor Material Aluminum, Copper
- Package Type Box
- Current 10 amperes
- Height 2.953 inches, 75 millimeters
- Weight 9.327 grams
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Country of Origin Germany
- Insulation Material Polyamide
- Color Orange
- Strip Length 0.35 inches, 9 millimeters
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Voltage 400 volts
- Mounting Type DIN-35 Rail
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 280-805 on Powermatic Associates is $6.62. Order now.
About the product
Wago 280-805 is a feed-through terminal block designed for efficient wire connection and disconnection. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for currents up to 10A according to IEC standards, and 15A according to both UL and CSA standards. It is designed as a 1-deck level with a tab disconnect configuration. The terminal operates at a rated impulse voltage of 6 kV and has a control voltage for DIN-35 rail mounting. The 280-805 terminal block is suitable for wires ranging from 0.08mm^2 to 2.5mm^2 or #28AWG to #12AWG, both fine stranded or solid conductors. It is constructed from Polyamide (PA) 66, ensuring durability and compatibility with a wide range of applications. The terminal block dimensions are H75mm x W5mm x D52.5mm, and it supports a 4-wire connection (2 clamps + 2 clamps) configuration. The operating voltage is rated at 400V according to IEC standards, 300V according to UL standards, and 600V according to CSA standards.
