283-601 WAGO Industrial Automation Components
Part#:283-601
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

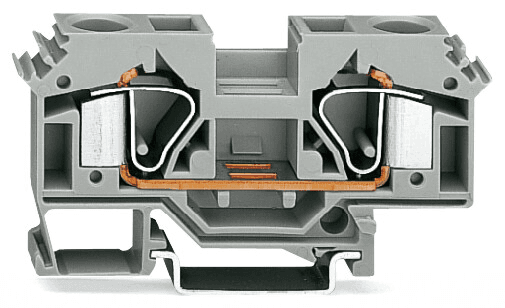

283-601 WAGO - 2-conductor through terminal block; 16 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm²; gray
Product Details
- Weight 31.82200837 g
- Country Of Origin China
- HTS Code 85369010000
- Mounting Type DIN-35 Rail
- Conductor Size 16 millimeters, 6 american wire gauge
- Conductor Material Copper
- Weight 31.822 grams
- Country of Origin China
- Package Type Box
- Flammability Class V0
- Voltage 800 volts
- Insulation Material Polyamide
- Current 76 amperes
- Strip Length 0.67 inches, 17 millimeters
- Height 3.15 inches, 80 millimeters
- Actuator Operating Tool
- Width 0.472 inches, 12 millimeters
- Color Gray
- Operating Temperature 105 degrees celsius
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 283-601 on Powermatic Associates is $7.84. Order now.
About the product
Wago 283-601 is a feed-through terminal block designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for a current of 76A according to IEC standards and is designed as a single-deck unit with lateral marking slots for easy identification. It supports a rated impulse voltage of 12 mm and has a net height of 8 kV, indicating its insulation level. The terminal block is designed to be mounted on a DIN-35 rail, accommodating a range of control voltages. Its dimensions are H80mm x W12mm x D37.5mm, making it compact for installation in various applications. The terminal block is suitable for 0.2mm2 to 16mm2 fine stranded or solid conductors, equivalent to #24AWG to #6AWG, and is made from Polyamide (PA) 66 for durability. It features a 1 feed-through pole (1P) and utilizes a 2-wire connection system (1 clamp + 1 clamp) for reliable wire termination. The terminal block is rated for an operating voltage of 800 V according to IEC standards.
