721-616/114-000 WAGO Industrial Automation Components

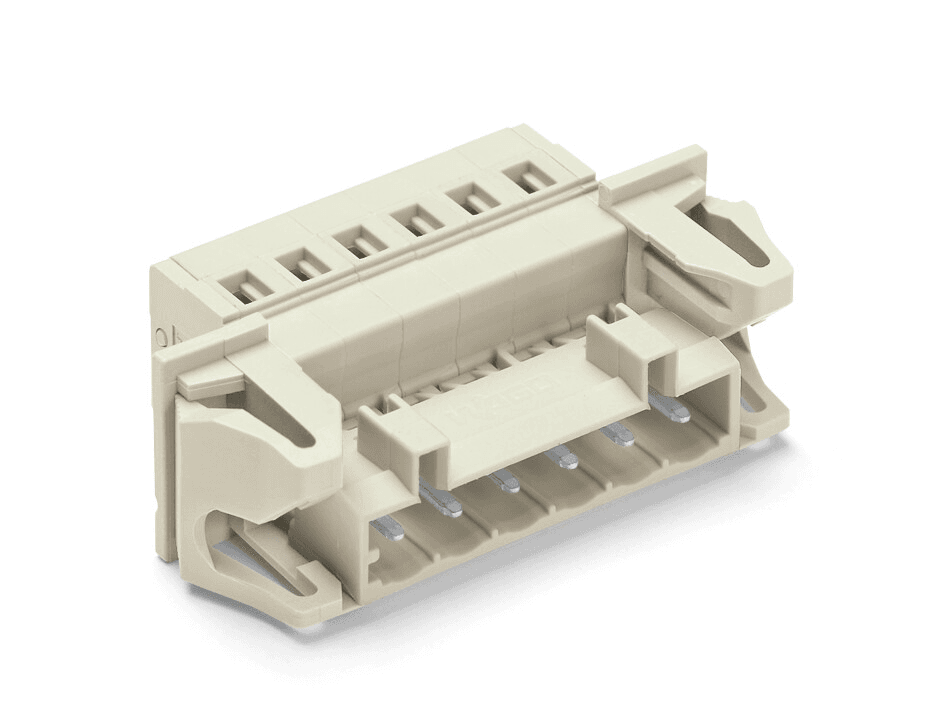

WAGO 721-616/114-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with ratings varying by use group, including a UL 1977 rating of 600V and 15A. This part features 16 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors of various sizes. The physical dimensions include a pin spacing of 5mm, width of 101mm, height of 17.5mm, and depth of 27.5mm. It offers variable coding, snap-in flange or feed-through mounting, and is made from light gray Polyamide (PA66) with a flammability class of UL94 V0. The connector is RoHS compliant, has a fire load of 0.428MJ, and weighs 26.1g. It operates within a temperature range of -60 to +100°C and is designed for processing temperatures between -35 and +60°C. The product is packaged in boxes of 10 pieces and has a GTIN of 4050821280217.
