727-220/024-000 WAGO Industrial Automation Components

727-220/024-000 on Powermatic Associates
WAGO

Part#:727-220/024-000

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

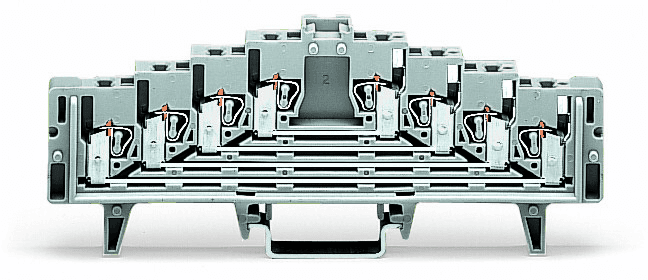

727-220/024-000 WAGO - 4-level terminal block for matrix patching; without locking clips; one potential per level; with 2.3 mm Ø test port; marking: d-c-b-a--a-b-c-d; for 35 x 7.5 mounting rail; 1.5 mm²; 1,50 mm²; gray

Product Details

  • Weight
    32.00000842 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Conductor Size
    1.5 millimeters, 16 american wire gauge
  • Strip Length
    0.39 inches, 10 millimeters
  • Flammability Class
    V0
  • Country of Origin
    Germany
  • Weight
    32.000 grams
  • Current
    12 amperes
  • Width
    0.3 inches, 7.62 millimeters
  • Height
    126 millimeters, 4.961 inches
  • Conductor Material
    Copper
  • Voltage
    250 volts
  • Insulation Material
    Polyamide
  • Color
    Gray
  • Package Type
    Box
  • Actuator
    Operating Tool
  • Operating Temperature
    105 degrees celsius
  • Mounting Type
    DIN-35 Rail

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 727-220/024-000 on Powermatic Associates is $18.84. Order now.

About the product

Wago 727-220/024-000 is a terminal designed for feed-through terminal block applications with matrix patching capabilities. It features CAGE-CLAMP spring connections for secure and maintenance-free wire connections. This terminal is rated for a current of 12A according to IEC standards and is designed with four decks/levels, accommodating 4 feed-through poles (4P). It is suitable for mounting on DIN-35 rail (35 x 7.5) and comes in a gray color. The terminal has dimensions of H126mm x W7.62mm x D44.5mm and is compatible with wire sizes ranging from 0.08mm2 to 1.5mm2 or #28AWG to #16AWG for both fine stranded and solid conductors. The terminal block is made from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It supports a rated impulse voltage (Uimp) of 7.62 mm and operates at a control voltage (AC) up to (IEC) 250 V. The design includes 16-wires (8 clamps + 8 clamps) (8+8) for comprehensive connectivity options.
