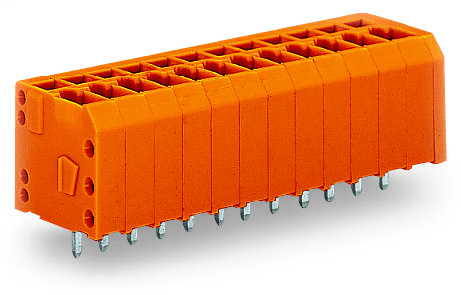

739-334 WAGO Terminal Blocks

WAGO 739-334 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 200V (III/3), 320V (III/2), and 500V (II/2), with rated impulse voltages of 4kV for all categories and a rated current of 17.5A. Under UL 1059, it has rated voltages of 300V and rated currents of 15A for Use Group B and 10A for Use Group D. The connector has 4 connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.08 to 1.5mm2 (28 to 14 AWG), including options for both insulated and uninsulated ferrules. The connector has a 90-degree conductor connection direction to PCB, a pole number of 4, and a strip length of 5 to 6mm. Physically, it has a pin spacing of 3.81mm, dimensions of 16.74mm in width, 15.7mm in height, 13.4mm in depth, and a solder pin length of 3.4mm. The connector is orange, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for its contacts. It operates within a temperature range of -60 to +105°C, weighs 2.9g, and is RoHS compliant without exemptions. The product is packaged in boxes of 280 pieces, has a GTIN of 4044918301695, and is manufactured in Poland.
