745-310 WAGO Industrial Automation Components

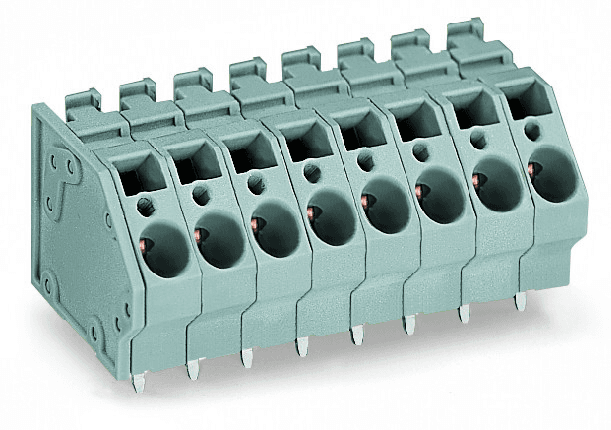

WAGO 745-310 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), with rated impulse voltages of 6kV for both III/3 and III/2, and a rated surge voltage of 6kV for II/2. The rated current is 41A. For UL ratings, it has a rated voltage of 300V for Use Group B, 150V for Use Group C, and 300V for Use Group D, with corresponding rated currents of 30A for Groups B and C, and 10A for Group D. CSA ratings mirror those of UL. The part includes 10 connection points, with a single connection type utilizing CAGE CLAMP technology and an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.2 to 6mm2 (24 to 10 AWG), with strip length requirements of 11 to 12mm. The conductor connection direction to PCB is 45 degrees, and it has a pole number of 10. Physical specifications include a pin spacing of 7.5mm, dimensions of 76.6mm in width, 27.5mm in height, 29.1mm in depth, and a solder pin length of 4.5mm. The terminal block is gray, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, weighs 48.3g, and is RoHS compliant. The product is packaged in boxes of 24 pieces and has a GTIN of 4044918302319.
