756-1303/060-020 WAGO Industrial Automation Components
Part#:756-1303/060-020
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

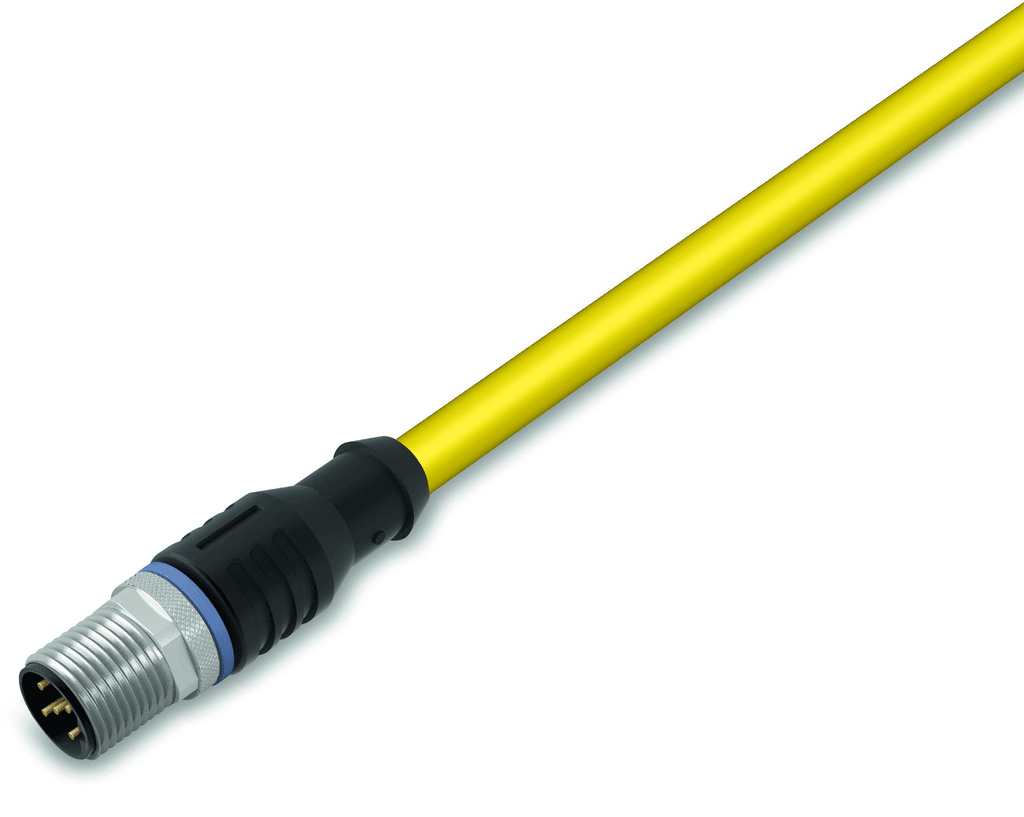

756-1303/060-020 WAGO - System bus cable; M12B plug; straight; 5-pole; Length: 2 m
Product Details
- Weight 93.70002464 g
- Country Of Origin Germany
- HTS Code 85444290900
- Connection Type Free End, M12 Plug
- Cable Length 2 meters
- Contact Type CuNi/Au
- Color Yellow
- Weight 93.700 grams
- Package Type Box
- Housing Material TPU
- Operating Voltage 60 volts
- Contact Material CuZn
- Country of Origin Germany
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
WAGO 756-1303/060-020 is a B-coded M12 plug to free end connector with a 5-pole configuration. It features a cable connection direction to mating direction of 0° and a cable length of 2 meters. Designed for use with WAGO PLCs, it operates at a voltage of 60V and a current of 4A. The rated surge voltage is 1.5kV per IEC 61076-2-101, with a contact resistance of 10mΩ and an insulation resistance of ≥ 5 x 10^8Ω. The conductor resistance is ≤ 145Ω/km, and it has a bending radius of 5 times the cable diameter minimum. The sheathed cable diameter is 6mm, and it is shielded with aluminum-laminated foil and tinned copper braid for approximately 65% optical coverage. The conductor configuration consists of bare copper wire (26/7 AWG) with Zell-PE insulation. The housing material is TPU/TPU in black (RAL 9005), and the contact material is CuZn with CuNi/Au plating. The connections feature a hexagon knurled nut CuZn with a nickel-plated surface and a sealing ring made of FPM (Viton). It supports up to 100 mating cycles, requires a tightening torque of 1Nm, and weighs 93.7g. The connector is yellow and operates within an ambient temperature range of -25 to +60°C. It is rated IP67 for protection and has a pollution degree of 3/2 per IEC 60664-1. The product complies with RoHS, including an exemption under 6(c), and has multiple SCIP notification numbers for various EU countries. Its packaging type is a box, and it is manufactured in Germany with a GTIN of 4045454791261 and a customs tariff number of 85444290900.
