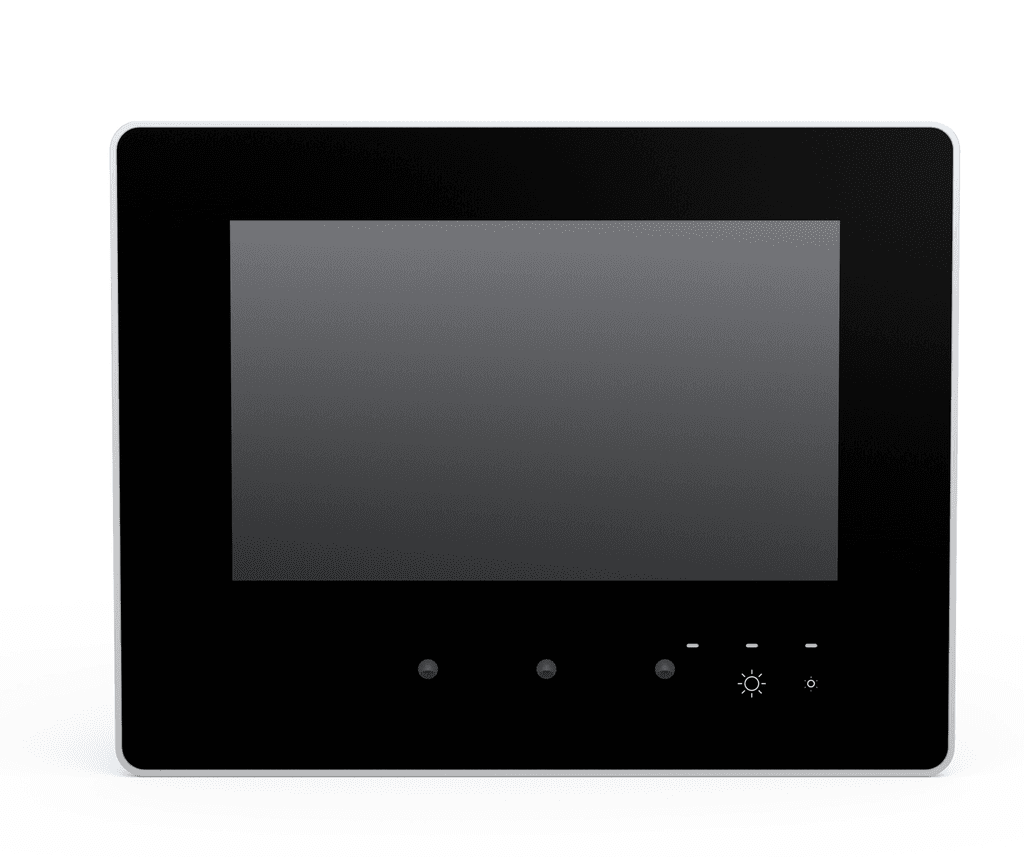

762-6303/8000-002 WAGO Industrial Automation Components

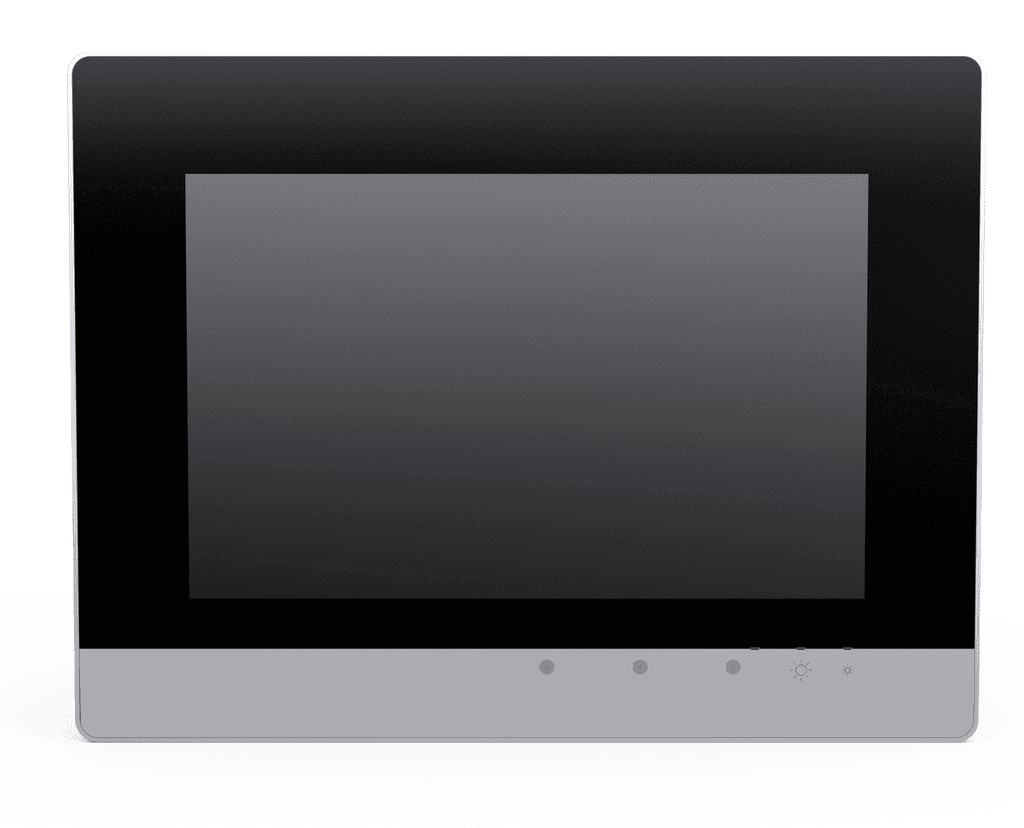

WAGO 762-6303/8000-002 is an automation part featuring a 17.8 cm (7") resistive touchscreen display with a black front, capable of displaying 16 million colors at a resolution of 800 x 480 pixels. It offers a contrast ratio of 800:1, a viewing angle of 89 degrees both horizontally and vertically, and a brightness of 450cd/m^2. This part supports visualization through Web server, Web-Visu, and Target Visu, and is compatible with a wide range of ETHERNET protocols including DHCP, DNS, FTP, FTPS, HTTP, HTTPS, SSH, and more. It facilitates communication via various methods such as Web browser (HTML5), Modbus TCP master/slave, EtherNet/IP™ Adapter (slave), EtherNet/IP™ Scanner, CANopen, EtherCAT Master, OPC UA Server/Client, MQTT, RS-232 serial interface, RS-485 interface, among others, with some features requiring an additional license. The operating system is Real-time Linux (with RT-Preempt patch), powered by an ARM Cortex A9 Quadcore 1.0 GHz processor. It has 2,048MB of RAM, 4096MB of internal memory, 32MB of program memory, and 128MB of data memory, supporting microSD (max. 2GB) and microSDHC (max. 32GB) memory cards. The part includes three-color LED indicators, resistive touch panel, two capacitive keys, and a proximity sensor for controls. It requires a 24 VSELV DC supply voltage (18...31.2 V) with reverse voltage protection, consuming 8.8 W of operating power without USB load and 13.9 W with USB load. Connection options include Modbus (TCP, UDP) 2 x RJ-45, EtherNet/IP™ 2 x RJ-45, CANopen 1 x D-sub 9 plug, and more. Physically, it measures 213mm in width, 167mm in height, and 78mm in depth, with a panel cutout of 198 x 152mm, and weighs 1880g. It operates within an ambient temperature range of -20...+55°C (vertical mounting) or -20...+50°C (other positions), and has a storage temperature range of -20...+80°C. The part is IP65 rated on the front side and IP20 on the rear side, per EN 60529, and can handle up to 90% relative humidity without condensation. Mounting options include clamping elements or VESA mount. It is RoHS compliant without exemption, packaged in a box, with a single piece per unit, and has a GTIN of 4055143943239.
