769-104/000-036 WAGO Terminal Blocks
Part#:769-104/000-036
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

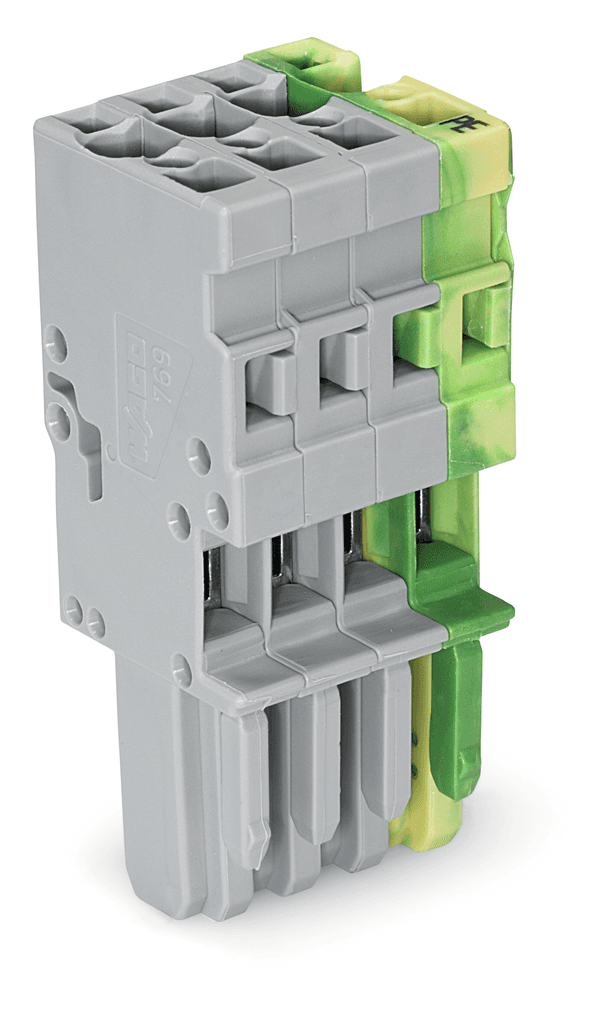

769-104/000-036 WAGO - 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 4-pole; coding finger; 4,00 mm²; green-yellow/gray
Product Details
- Weight 12.9200034 g
- Country Of Origin Germany
- HTS Code 85366990990
- Width 0.787 inches, 20 millimeters
- Voltage 500 volts
- Strip Length 0.35 inches, 9 millimeters
- Weight 12.920 grams
- Package Type Box
- Insulation Material Polyamide
- Operating Temperature 105 degrees celsius
- Height 1.78 inches, 45.2 millimeters
- Flammability Class V0
- Depth 0.72 inches, 18.3 millimeters
- Current 32 amperes
- Country of Origin Germany
- Connection Type For Conductor
- Conductor Size 12 american wire gauge, 4 millimeters
- Actuator Operating Tool
- Conductor Material Copper
- Color Gray, Green, Yellow
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 769-104/000-036 on Powermatic Associates is $7.45. Order now.
About the product
Wago 769-104/000-036 is a 1-conductor neutral-through female plug designed for plug-in connections. It features CAGE-CLAMP spring connections for secure and maintenance-free wiring. This plug is rated for a current of 32A and is compatible with a pin spacing of 5mm. It has a net height of 20mm and a net width that accommodates 3-poles plus protective-earth (3P+PE). The plug is designed to handle a rated impulse voltage (Uimp) of 6 kV and is suitable for conductors ranging from 0.08mm2 to 4mm2 or #28AWG to #12AWG, with a nominal cross-section of 4mm2. The construction material is Polyamide (PA) 66, which is halogen-free, and it has a rated voltage of 500 V (IEC). This plug is part of the X-COM series and comes in gray/green-yellow, indicating its function and safety features.
