805-303 WAGO Industrial Automation Components

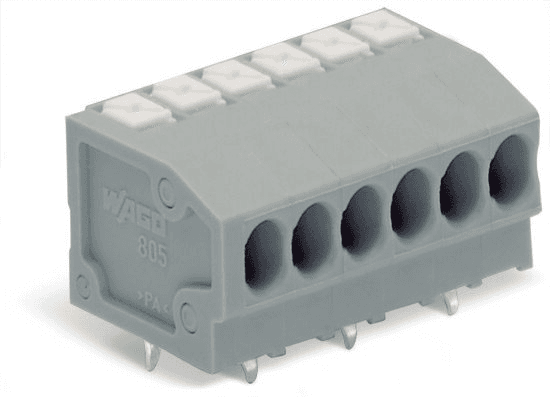

WAGO 805-303 is a printed circuit connector with a nominal voltage rating of 250V (III/3), 320V (III/2), and 630V (II/2) according to IEC/EN 60664-1 standards, and a rated current of 17.5A. It features a rated impulse voltage of 4kV across different overvoltage categories and pollution degrees. For UL standards, it has a rated voltage of 300V for Use Group B and D, and 150V for Use Group C, with a rated current of 10A for all groups. This connector has three connection points, supports a single connection type with push-in CAGE CLAMP technology, and is designed for a single level with no test slots. It accommodates solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 16 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules. The strip length for connection is specified as 9 to 10mm, with a conductor connection direction to PCB of 0° and a pole number of 3. Physically, it has a pin spacing of 3.5mm, dimensions of 12mm in width, 13.7mm in height, 13.6mm in depth, and a height from the surface of 10.5mm. The solder pin length is 3.2mm with dimensions of 0.5 x 0.75mm, and it requires a drilled hole diameter with tolerance of 1.1 (+0.1)mm. The connector is gray, made from Polyamide (PA66) with a flammability class of V0 according to UL94, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts. It has a fire load of 0.031MJ and weighs 1.5g. Designed to operate within a temperature range of -60 to +105°C, it complies with RoHS without exemptions. The product is part of WAGO's Product Group 4, packaged in boxes of 420 pieces, manufactured in Poland, with a GTIN of 4045454731748 and a customs tariff number of 85369010000.
