831-1106/306-000 WAGO Industrial Automation Components

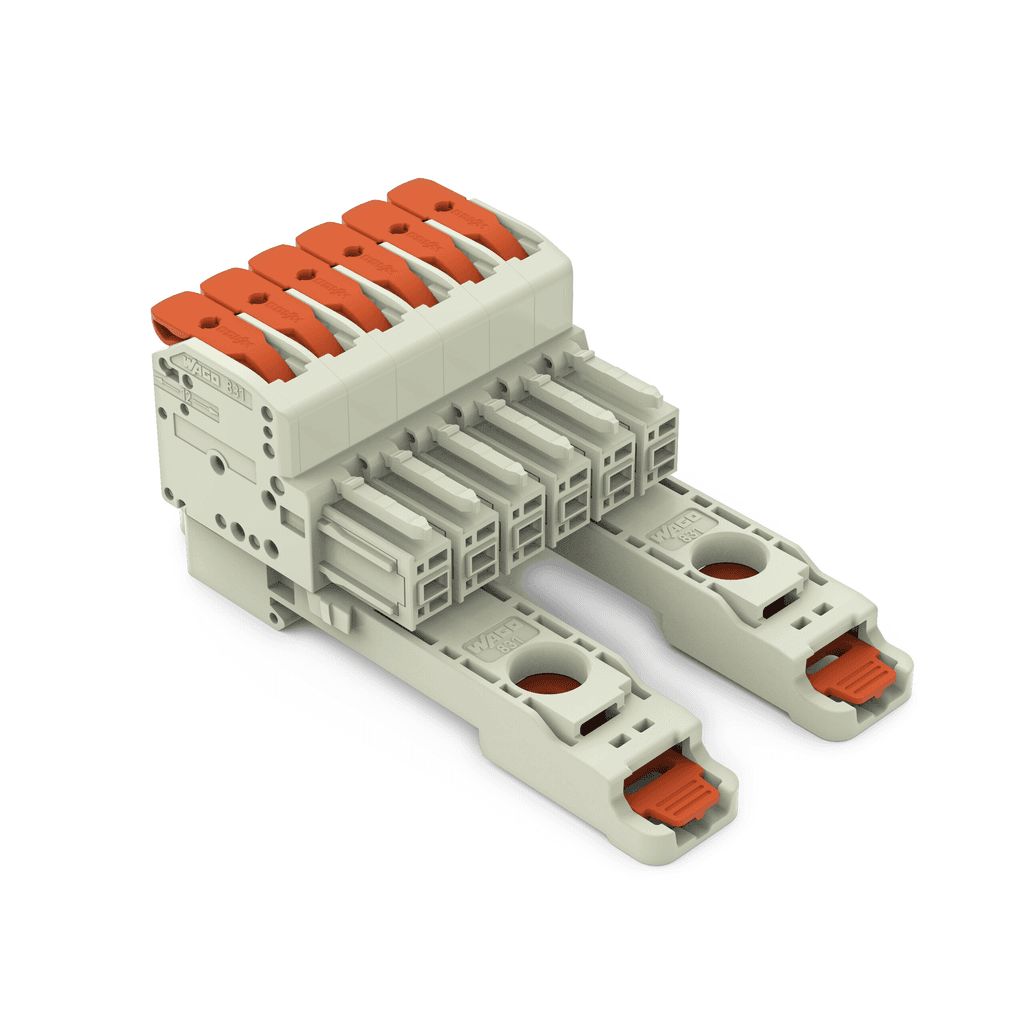

WAGO 831-1106/306-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for use in applications as specified by DIN EN 61984, with a focus on safety by prohibiting connection or disconnection under load or live conditions. It features electrical ratings per IEC/EN 60664-1, including a nominal voltage of 800V (III/3), rated impulse voltage of 8kV (III/3), rated voltage of 1000V (III/2), and a rated current of 41A. UL and CSA approvals are noted, with UL ratings of 600V and 37A for Use Group C, and CSA ratings of 600V and 35A for Use Group C. The connector supports a total of 6 potentials, with a single connection type and level, utilizing Push-in CAGE CLAMP technology with lever actuation for solid and fine-stranded conductors ranging from 0.5 to 10mm2 / 20 to 8 AWG. Physical specifications include a pin spacing of 7.62mm, width of 47.6mm, height of 36.2mm, and depth of 88.4mm, with mounting options for DIN-35 rail or panel mounting. The connector is made from light gray Polyamide (PA66) with a flammability class of UL94 V0, and features chrome-nickel spring steel for the clamping spring and tin-plated electrolytic copper contacts. It operates within a temperature range of -60 to +105°C, is RoHS compliant, and comes in packages of 6 pieces with the country of origin being Germany (DE).
