831-3108/037-000 WAGO Industrial Automation Components

831-3108/037-000 on Powermatic Associates
WAGO

Part#:831-3108/037-000

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

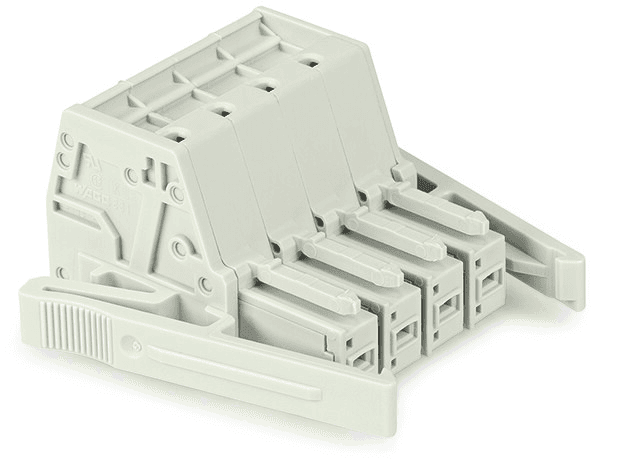

831-3108/037-000 WAGO - 1-conductor female connector; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 8-pole; 100% protected against mismating; Lateral locking levers; 10,00 mm²; light gray

Product Details

  • Weight
    61.76401624 g
  • Country Of Origin
    Poland
  • HTS Code
    85366990990
  • Country of Origin
    Poland
  • Width
    3.45 inches, 87.64 millimeters
  • Flammability Class
    V0
  • Connection Type
    For Conductor
  • Voltage
    800 volts
  • Depth
    1.65 inches, 41.9 millimeters
  • Actuator
    Operating Tool
  • Height
    1.087 inches, 27.6 millimeters
  • Contact Material
    Copper
  • Strip Length
    0.59 inches, 15 millimeters
  • Conductor Size
    10 millimeters, 8 american wire gauge
  • Package Type
    Box
  • Contact Type
    Tin
  • Weight
    62.094 grams
  • Current
    41 amperes
  • Color
    Gray
  • Insulation Material
    Polyamide

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 831-3108/037-000 on Powermatic Associates is $18.93. Order now.

About the product

WAGO 831-3108/037-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 800V (III/3) and 1000V (III/2, II/2), rated impulse voltage of 8kV across these categories, and a rated current of 41A. UL and CSA approvals are included, with a rated voltage of 600V and rated currents of 42A (UL) and 41A (CSA) for Use Group C. The connector features 8 connection points, a single connection type with push-in CAGE CLAMP technology, and quick-connect/solder contact for the second connection type. It supports solid and fine-stranded conductors ranging from 0.5 to 10mm2 (20 to 8 AWG), with a strip length of 13 to 15mm. The physical dimensions include a pin spacing of 7.62mm, width of 87.64mm, height of 27.6mm, and depth of 41.9mm. It offers variable coding, anti-rotation protection, and mismating protection with a locking lever for secure connection. The connector is made from light gray Polyamide (PA66), with a flammability class of UL94 V0 and uses Chrome-Nickel spring steel for the clamping and additional spring material. The contact material is Electrolytic Copper with a tin plating. It operates within a temperature range of -60 to +105°C and has a fire load of 0.881MJ. Packaged in boxes of 12, it is RoHS compliant without exemptions, indicating adherence to environmental safety standards.
