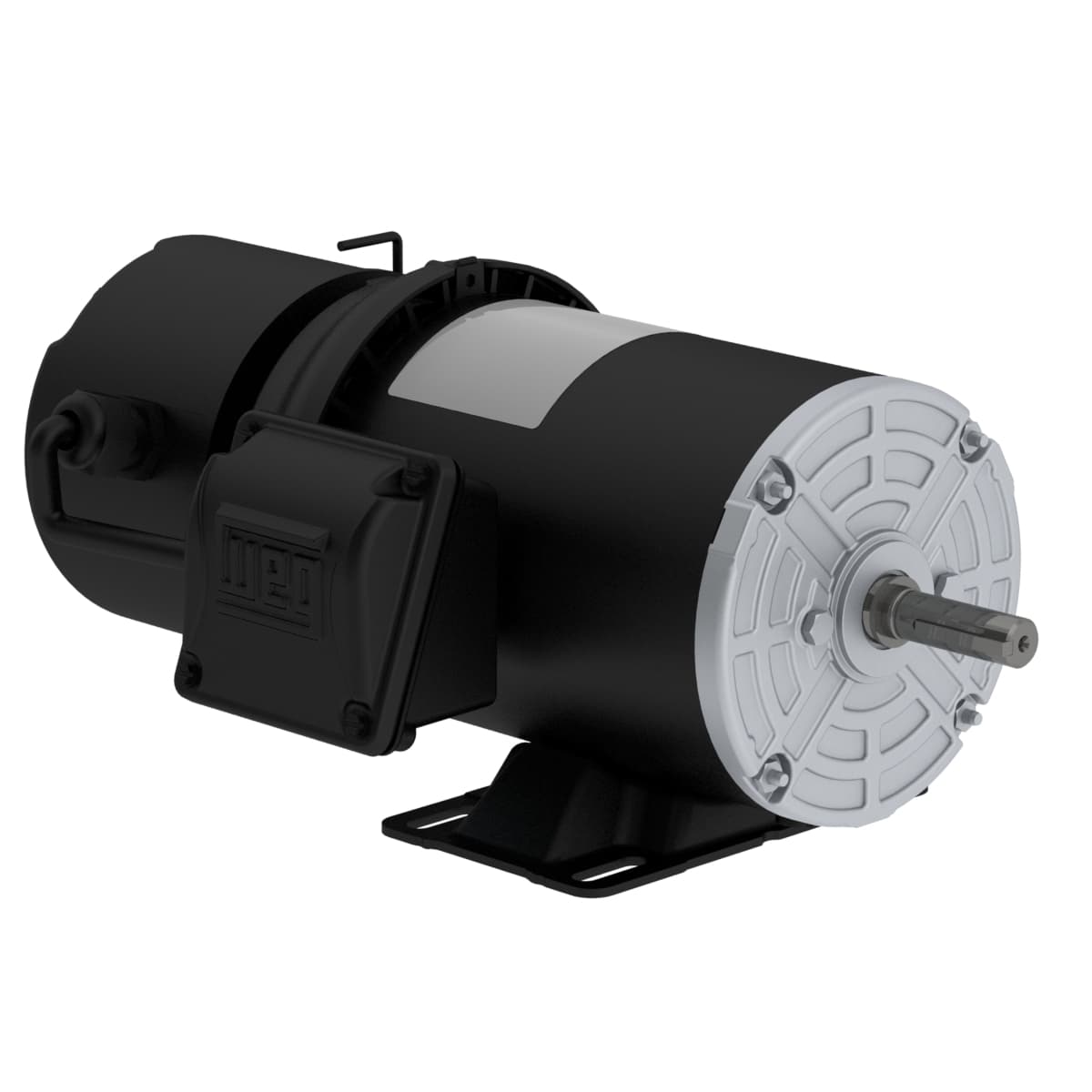

.2518ES3EBMW56-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 208-230/460 V
- Output Rating 0.25 HP
- Rated Speed 1735 rpm
- Flange Type Without
- L. R. Amperes 5.88-5.33/2.67 A
- Breakdown torque 290 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Output 0.25 HP (0.18 kW)
- Insulation Class F
- Standard NEMA MG-1
- Slip 3.61 %
- Locked rotor torque 240 %
- Degree of Protection IP55
- Output rating 0.25 HP
- Rated speed 1735 rpm
- Moment of inertia (J) 0.0280 sq.ft.lb
- Mounting F-1
- Number of poles 4
- Rated torque 0.757 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 23.2 lb
- Rated voltage 208-230/460 V
- Service factor 1.15 (1.00 @ 208V)
- Starting Method Direct On Line
- Rated current 1.11-1.01/0.503 A
- LRC 5.3x(Code K)
- Altitude 1000 m.a.s.l.
- Voltage 208-230/460//190-220/380-415 V
- Frequency 60 Hz
- Temperature rise 80 K
- Noise level² 50.0 dB(A)
- Frame W56
- Locked rotor time 54s (cold) 30s (hot)
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Number of Poles 4
- No load current 0.716-0.830/0.415 A
- Rotation¹ Both (CW and CCW)
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
