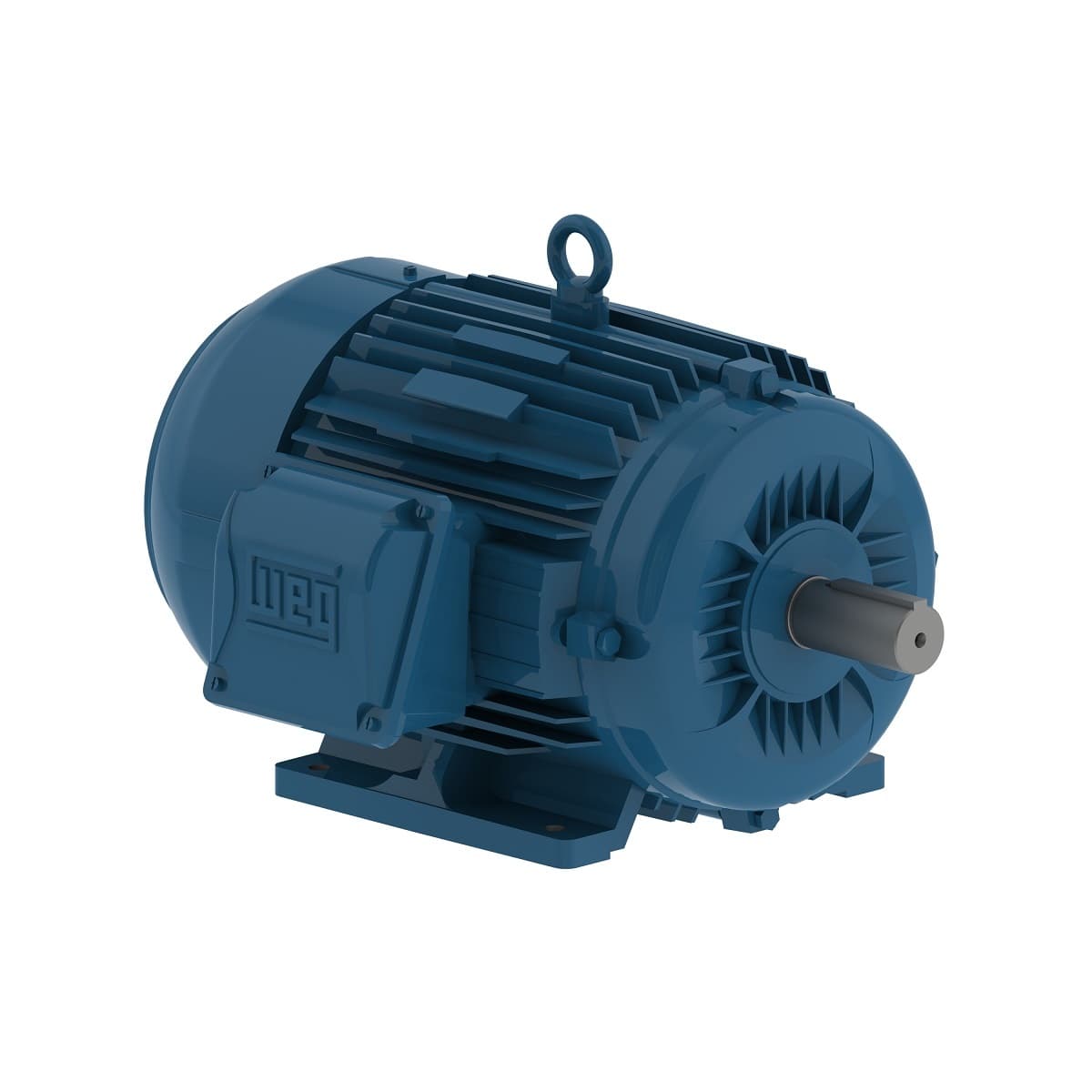

00312EG3E213T-W22 WEG AC Motors

00312EG3E213T-W22 on Powermatic Associates

WEG

Part#:00312EG3E213T-W22

Alt. Part#:7909158777778

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Active

Product description

W22 Super Premium Efficiency 3 HP 6P 213/5T 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

Product Details

Number of Poles
6 Pole
Voltage
230/460 V
Output Rating
3 HP
Rated Speed
1175 rpm
Flange Type
Without
Number of Poles
6
Moment of inertia (J)
1.53 sq.ft.lb
Duty Cycle
Cont.(S1)
Voltage
208-230/460//380 V
Frequency
60 Hz
Temperature rise
80 K
Synchronous speed
1200 rpm
Rated current
8.62/4.31 A
Rated torque
13.4 ft.lb
Noise level²
55.0 dB(A)
Rated speed
1175 rpm
Locked rotor time
162s (cold) 90s (hot)
Starting Method
Direct On Line
Standard
NEMA MG-1
L. R. Amperes
62.1/31.0 A

Service factor

1.25

Approx. weight³

179 lb

Output

3 HP (2.2 kW)

Enclosure

IC411 - TEFC

Ambient temperature

-20°C to +40°C

Output rating

3 HP

Slip

2.08 %

Locked rotor torque

180 %

Degree of Protection

IP55

Number of poles

6

No load current

5.13/2.56 A

Design

A

Rotation¹

Both (CW and CCW)

Terminal box¹

Left position

Frame

213/5T

Breakdown torque

290 %

LRC

7.2x(Code K)

Mounting

F-1

Rated voltage

230/460 V

Insulation Class

F

Altitude

1000 m.a.s.l.

Flange

Without

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
