00512OT3H215TC-S WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 575 V
- Output Rating 5 HP
- Rated Speed 1175 rpm
- Flange Type C
- L. R. Amperes 31.8 A
- Service factor 1.15
- Starting Method Direct On Line
- Rated current 5.39 A
- Moment of inertia (J) 1.08 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Number of Poles 6
- Breakdown torque 250 %
- Enclosure IC01 - ODP
- Output rating 5 HP
- Rated voltage 575 V
- Rated torque 22.3 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Slip 2.08 %
- Design B
- Approx. weight³ 118 lb
- Flange C
- Rated speed 1175 rpm
- Locked rotor time 52s (cold) 29s (hot)
- Standard NEMA MG-1
- Frame 213/5TC
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Output 5 HP (3.7 kW)
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- Frequency 60 Hz
- LRC 5.9x(Code H)
- Duty Cycle Cont.(S1)
- Number of poles 6
- No load current 2.84 A
- Temperature rise 80 K
- Noise level² 55.0 dB(A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00512OT3H215TC-S Related Documents
Manufacturer warranty
00512OT3H215TC-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 00512OT3H215TC-S with other AC Motors products
Number of Poles
Voltage
Output Rating
Rated Speed
Flange Type
L. R. Amperes
Service factor
Starting Method
Rated current
Moment of inertia (J)
Selected product
00512OT3H215TC-S
WEG

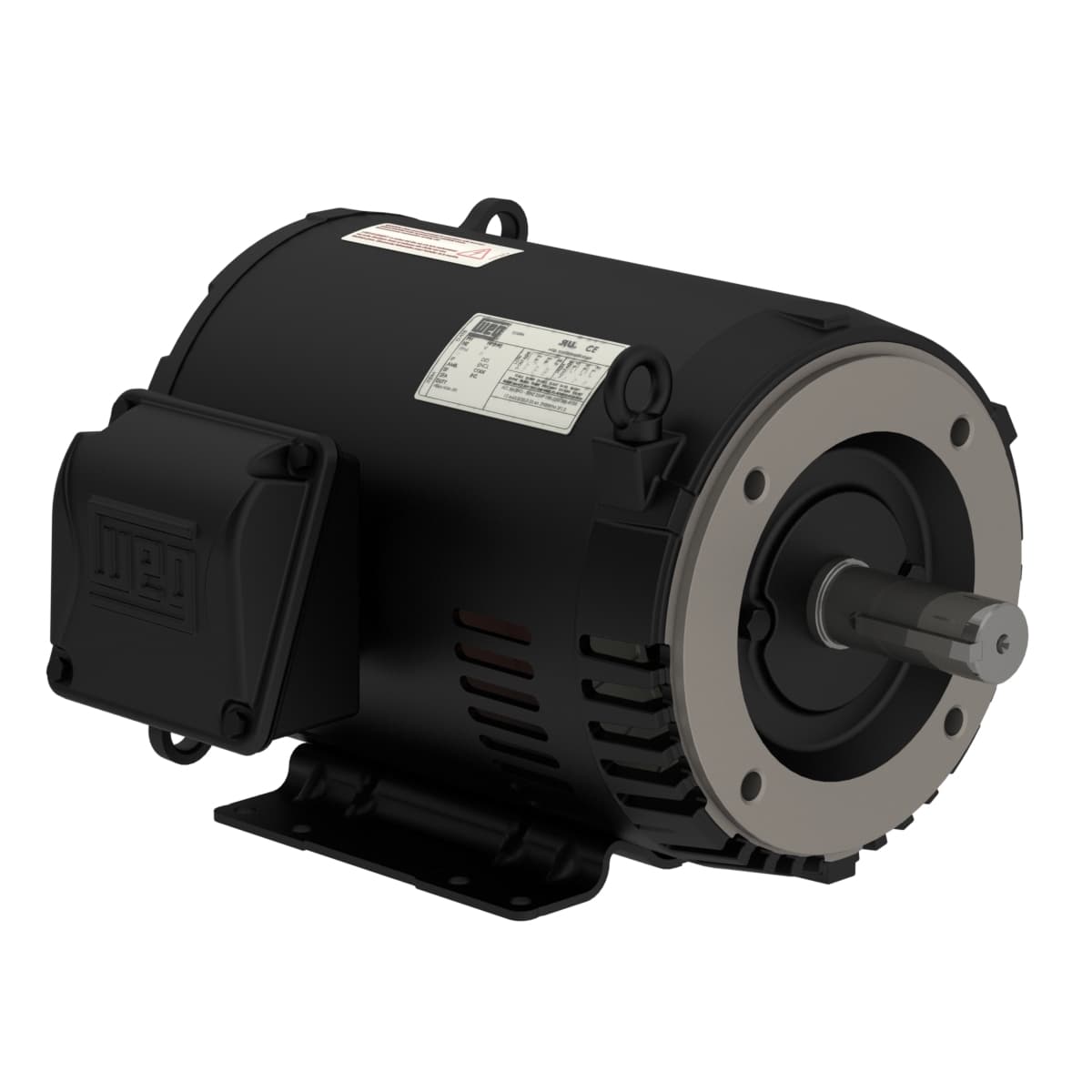

Rolled Steel NEMA Premium Efficiency 5 HP 6P 213/5TC 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Number of Poles6 Pole
Voltage575 V
Output Rating5 HP
Rated Speed1175 rpm
Flange TypeC
L. R. Amperes31.8 A
Service factor1.15
Starting MethodDirect On Line
Rated current5.39 A
Moment of inertia (J)1.08 sq.ft.lb
Number of Poles-
Voltage-
Output Rating-
Rated Speed-
Flange Type-
L. R. Amperes-
Service factor-
Starting Method-
Rated current-
Moment of inertia (J)-
Number of Poles-
Voltage-
Output Rating-
Rated Speed-
Flange Type-
L. R. Amperes-
Service factor-
Starting Method-
Rated current-
Moment of inertia (J)-
About the manufacturer
Powermatic Associates is an authorized WEG distributor, proudly offering an extensive range of high-quality products from one of the most respected manufacturers in the industrial sector. WEG is renowned for its innovative solutions in electric technologies, including energy, automation, and coatings. Their comprehensive product line features electric motors, geared motors, frequency inverters, au...
