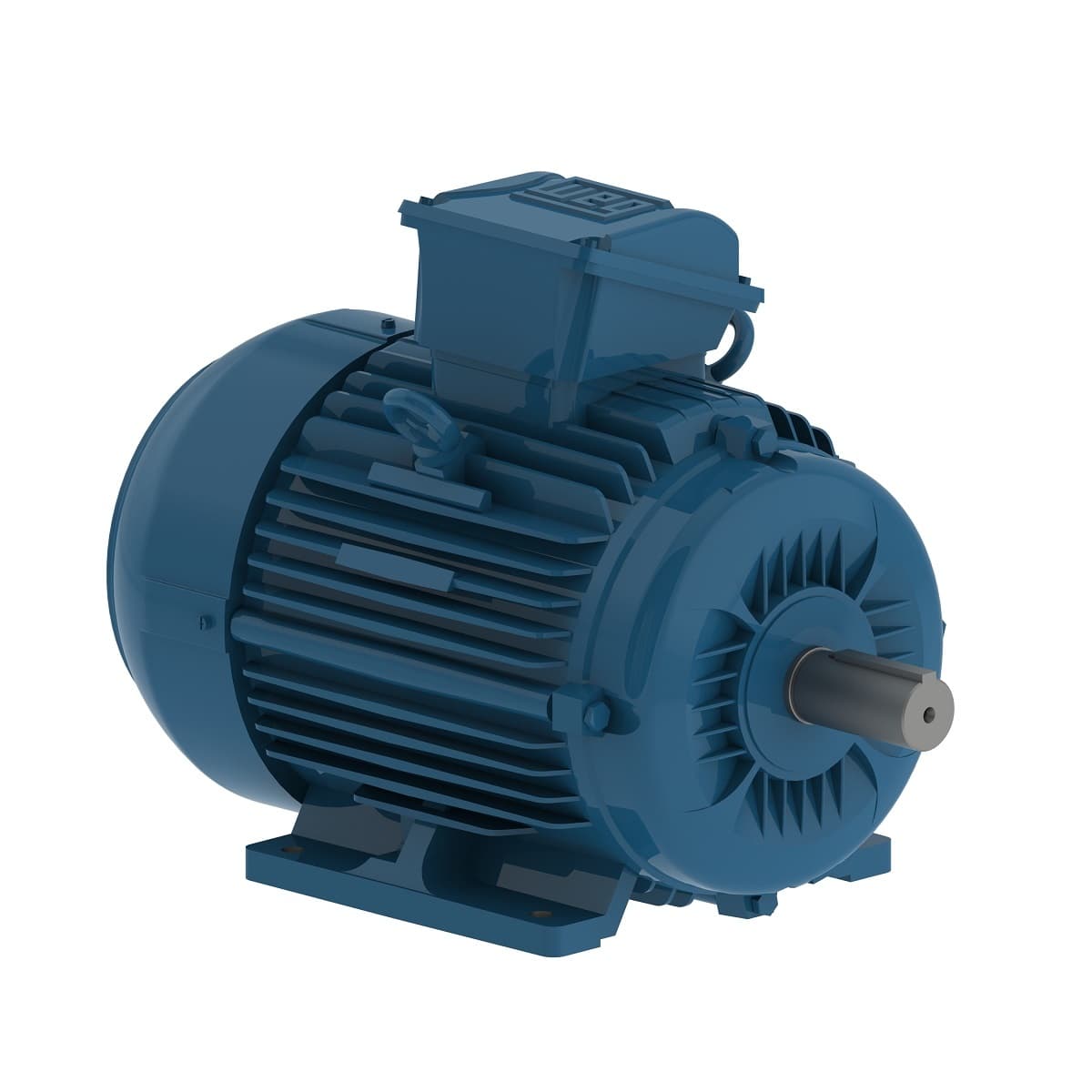

00718ET3E213TF3-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 7.5 HP
- Rated Speed 1765 rpm
- Flange Type Without
- Frequency 60 Hz
- Service factor 1.25
- Standard NEMA MG-1
- Rated torque 22.3 ft.lb
- Enclosure IC411 - TEFC
- Rated voltage 230/460 V
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Breakdown torque 310 %
- Starting Method Direct On Line
- Output rating 7.5 HP
- L. R. Amperes 130/65.2 A
- Rated speed 1765 rpm
- Locked rotor torque 220 %
- Rotation¹ Both (CW and CCW)
- Flange Without
- No load current 8.40/4.20 A
- Temperature rise 80 K
- Approx. weight³ 159 lb
- Rated current 18.4/9.18 A
- Slip 1.94 %
- LRC 7.1x(Code H)
- Duty Cycle Cont.(S1)
- Noise level² 58.0 dB(A)
- Synchronous speed 1800 rpm
- Locked rotor time 36s (cold) 20s (hot)
- Mounting F-3
- Number of Poles 4
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Degree of Protection IP55
- Terminal box¹ Top
- Frame 213T
- Moment of inertia (J) 1.34 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
