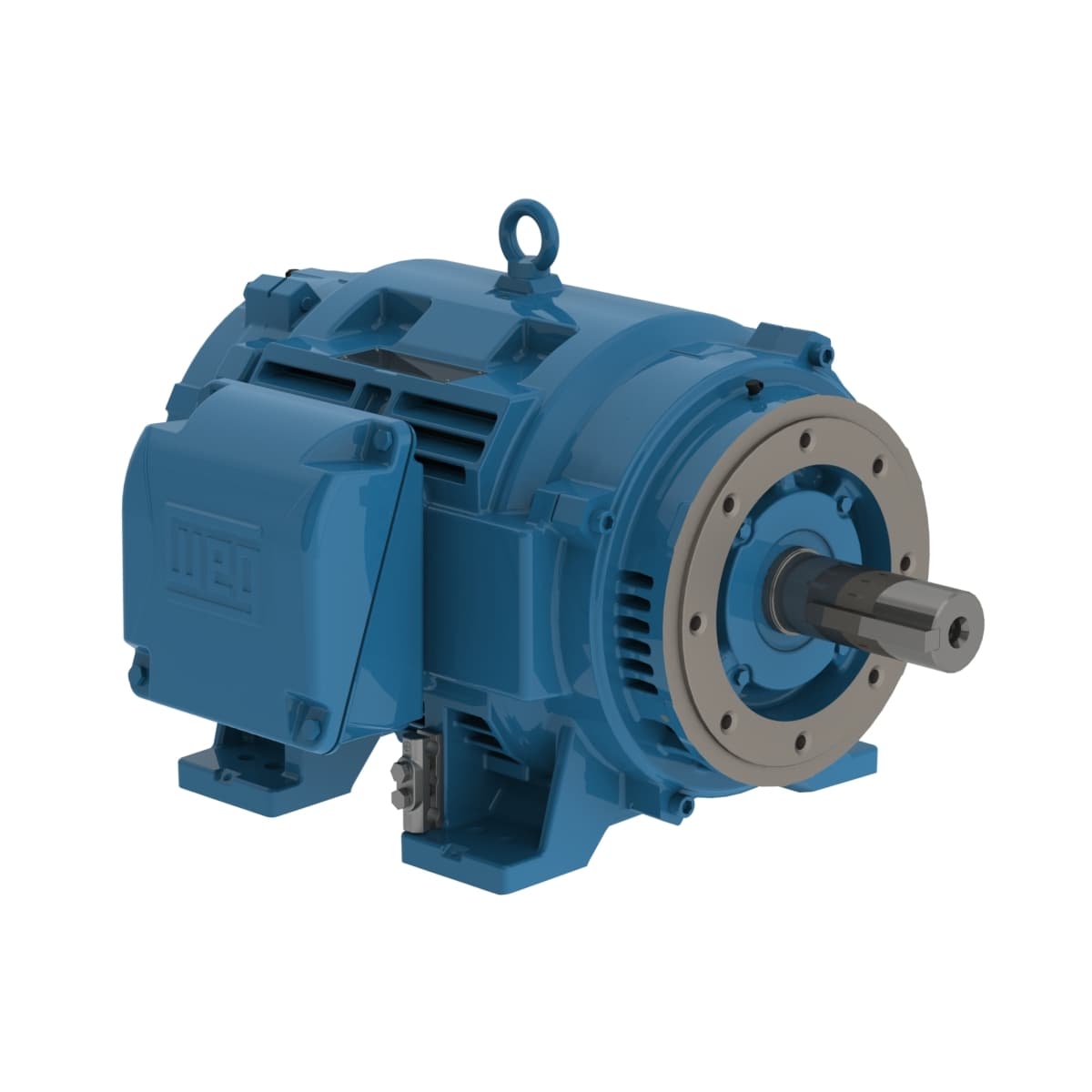

12518OT3G405TSDF2-W4 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 460 V
- Output Rating 125 HP
- Rated Speed 1780 rpm
- Flange Type D
- Output 125 HP
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Frame 404/5TSD
- No load current 47.0 A
- Enclosure IC01 - ODP
- Rated current 138 A
- Slip 1.11 %
- Locked rotor torque 270 %
- Temperature rise 80 K
- Number of poles 4
- L. R. Amperes 952 A
- Frequency 60 Hz
- Moment of inertia (J) 25.5 sq.ft.lb
- Starting Method Direct On Line
- Insulation Class F
- Output rating 125 HP
- LRC 6.9x(Code G)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1067 lb
- Synchronous speed 1800 rpm
- Rated voltage 460 V
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Flange D
- Rated speed 1780 rpm
- Rated torque 369 ft.lb
- Service factor 1.25
- Noise level² 69.0 dB(A)
- Number of Poles 4
- Breakdown torque 260 %
- Duty Cycle Cont.(S1)
- Terminal box¹ Right position
- Locked rotor time 18s (cold) 10s (hot)
- Voltage 460//380 V
- Design B
- Mounting F-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
