12894799 WEG AC Motors

12894799 on Powermatic Associates

WEG

Part#:12894799

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Discontinued

Product description

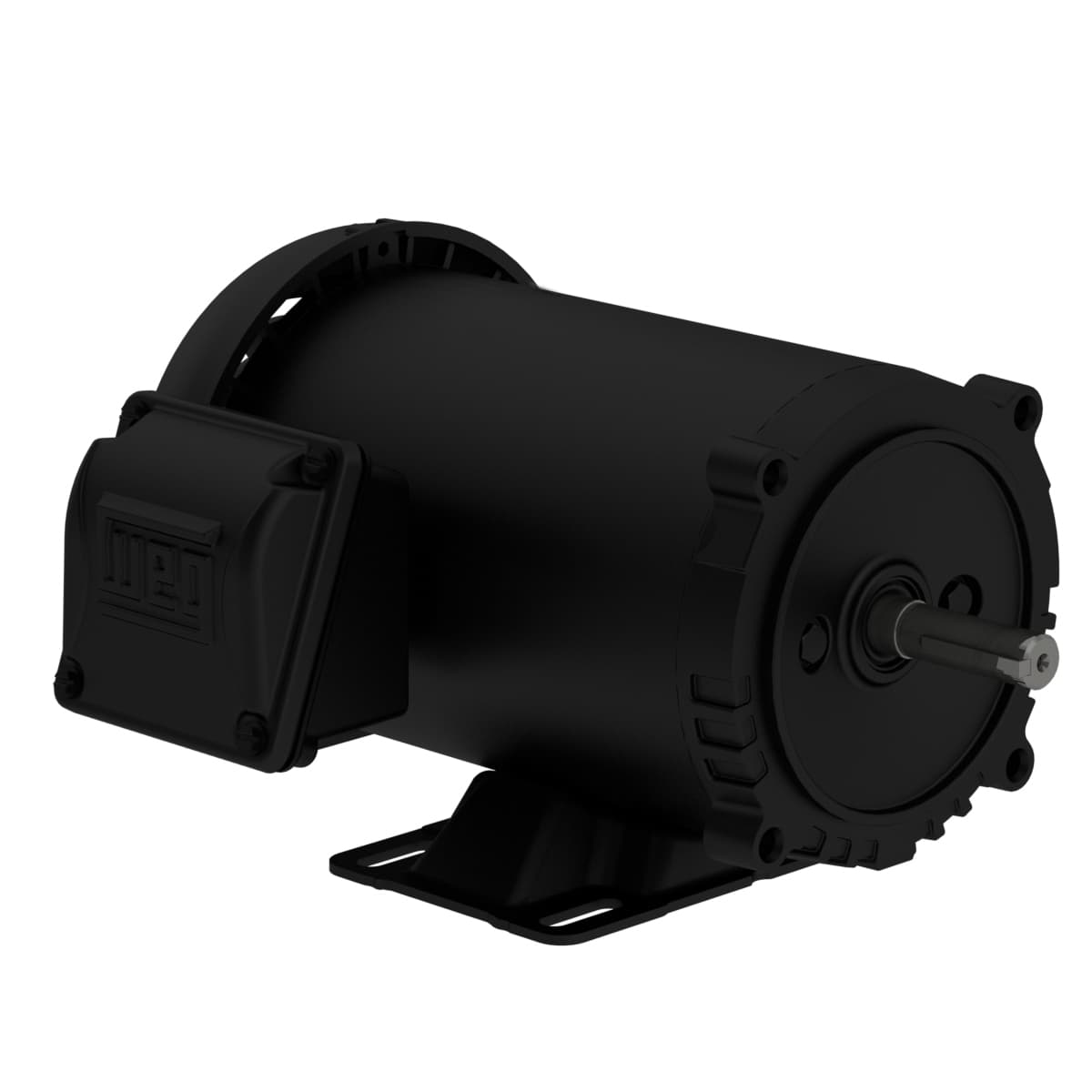

Rolled Steel Standard Efficiency 1 HP 4P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

Product Details

Rated speed
1760 rpm
Rated torque
2.98 ft.lb
Degree of Protection
IP55
Noise level²
52.0 dB(A)
Output rating
1 HP
LRC
7.7x(Code M)
Service factor
1.15 (1.00 @ 208V)
Rotation¹
Both (CW and CCW)
Output
1 HP (0.75 kW)
Rated voltage
230/460 V
Breakdown torque
300 %
Slip
2.22 %
Rated current
3.32/1.66 A
Locked rotor torque
270 %
Design
A
Moment of inertia (J)
0.0842 sq.ft.lb
Altitude
1000 m.a.s.l.
Ambient temperature
-20°C to +40°C
Frequency
60 Hz
Frame
56C

No load current

2.40/1.20 A

Locked rotor time

21s (cold) 12s (hot)

Insulation Class

F

Temperature rise

80 K

Duty Cycle

Cont.(S1)

Mounting

F-1

Starting Method

Direct On Line

Approx. weight³

27.9 lb

Standard

NEMA MG-1

Voltage

230/460//190-220/380-415 V

Synchronous speed

1800 rpm

Number of poles

4

Flange

C

Number of Poles

4

L. R. Amperes

25.6/12.8 A

Enclosure

IC411 - TEFC

Terminal box¹

Left position

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

12894799 Related Documents

Drawings.pdf Datasheet.pdf

Similar products from: WEG AC Motors

SSW070085T5SZ on Powermatic Associates

SSW070085T5SZ

WEG

SOFT-STARTER SSW070085T5SZ

SSW070130T5SZ on Powermatic Associates

SSW070130T5SZ

WEG

SOFT-STARTER SSW070130T5SZ

SSW070061T5SZ on Powermatic Associates

SSW070061T5SZ

WEG

SOFT-STARTER SSW070061T5SZ

UMBW-4C1-3 on Powermatic Associates

UMBW-4C1-3

WEG

WEG - UMBW-4C1-3

Manufacturer warranty

12894799 WEG

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 12894799 with other AC Motors products

Rated speed

Rated torque

Degree of Protection

Noise level²

Output rating

LRC

Service factor

Rotation¹

Output

Rated voltage

Selected product

12894799

Backordered

12894799

WEG

Rolled Steel Standard Efficiency 1 HP 4P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foo...

Rated speed1760 rpm

Rated torque2.98 ft.lb

Degree of ProtectionIP55

Noise level²52.0 dB(A)

Output rating1 HP

LRC7.7x(Code M)

Service factor1.15 (1.00 @ 208V)

Rotation¹Both (CW and CCW)

Output1 HP (0.75 kW)

Rated voltage230/460 V

1 in stock

SSW070085T5SZ

WEG

SOFT-STARTER SSW070085T5SZ

Rated speed-

Rated torque-

Degree of Protection-

Noise level²-

Output rating-

LRC-

Service factor-

Rotation¹-

Output-

Rated voltage-

1 in stock

SSW070130T5SZ

WEG

SOFT-STARTER SSW070130T5SZ

Rated speed-

Rated torque-

Degree of Protection-

Noise level²-

Output rating-

LRC-

Service factor-

Rotation¹-

Output-

Rated voltage-

About the manufacturer

WEG

Powermatic Associates is an authorized WEG distributor, proudly offering an extensive range of high-quality products from one of the most respected manufacturers in the industrial sector. WEG is renowned for its innovative solutions in electric technologies, including energy, automation, and coatings. Their comprehensive product line features electric motors, geared motors, frequency inverters, au...

Recently viewed products

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

RKC 4.5T-3-RSM 50/S90/S3570 on Powermatic Associates

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

CMBS 8151-0 on Powermatic Associates

CMBS 8151-0

Turck

CMBS 8151-0 Turck - CMBS 8151-0

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

Relevant products

12894790 on Powermatic Associates

12894790

Verified stock: 0

Rolled Steel Jet Pump - J type Standard Efficiency 1.5 HP 2P 56J 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

WEG

12894737 on Powermatic Associates

12894737

Verified stock: 0

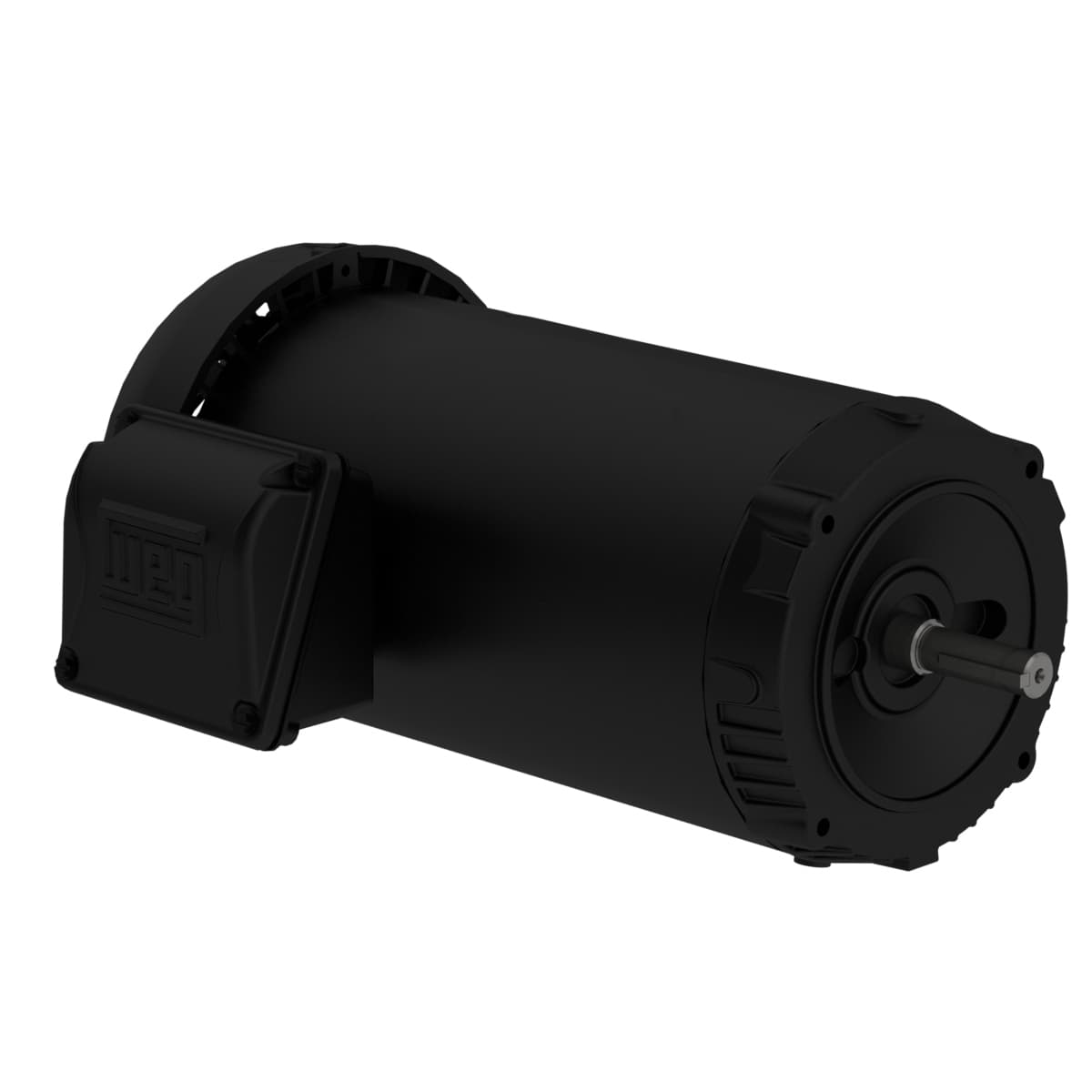

Rolled Steel Standard Efficiency 3 HP 2P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

WEG

12894795 on Powermatic Associates

12894795

Verified stock: 0

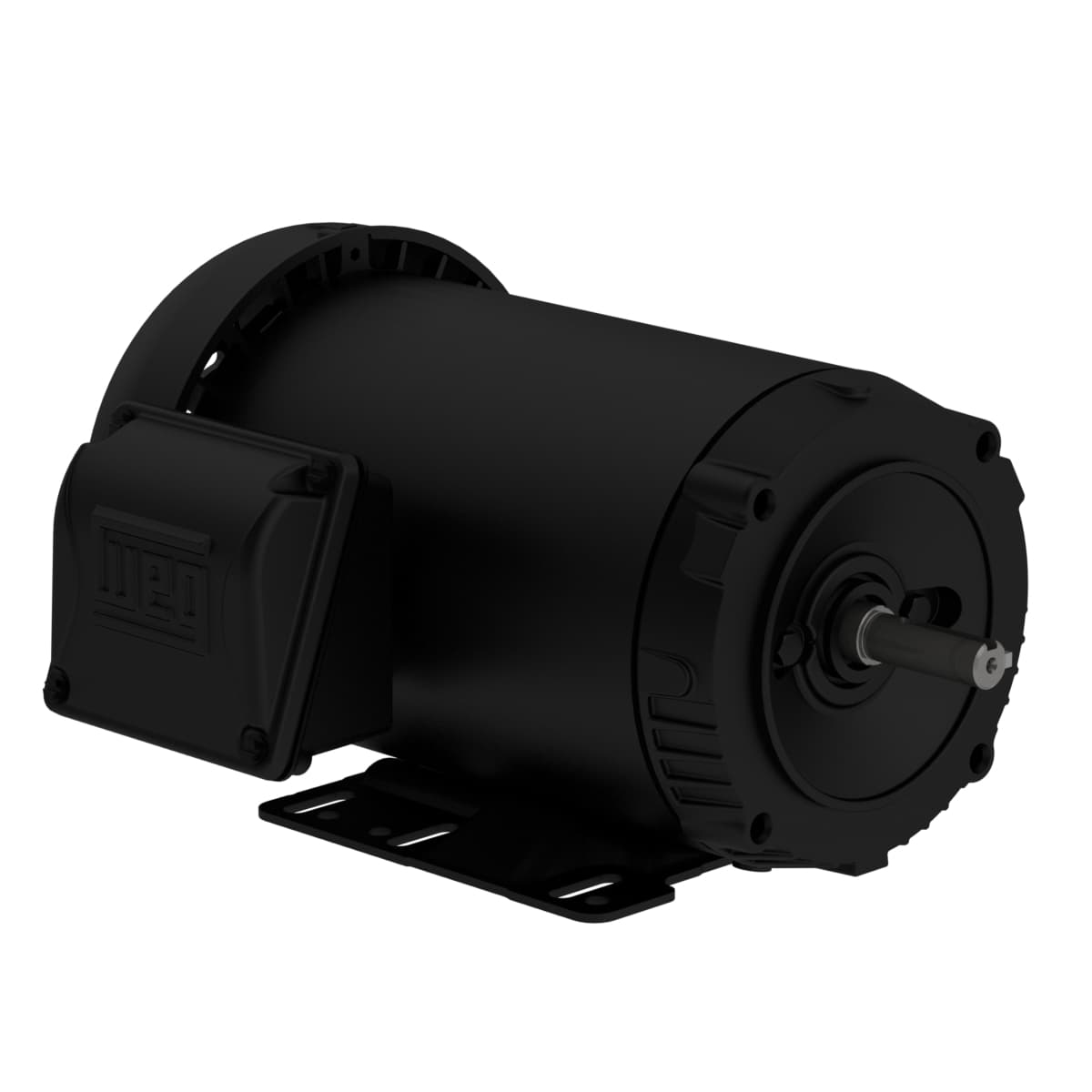

Rolled Steel Standard Efficiency 1 HP 2P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

WEG

12894797 on Powermatic Associates

12894797

Verified stock: 0

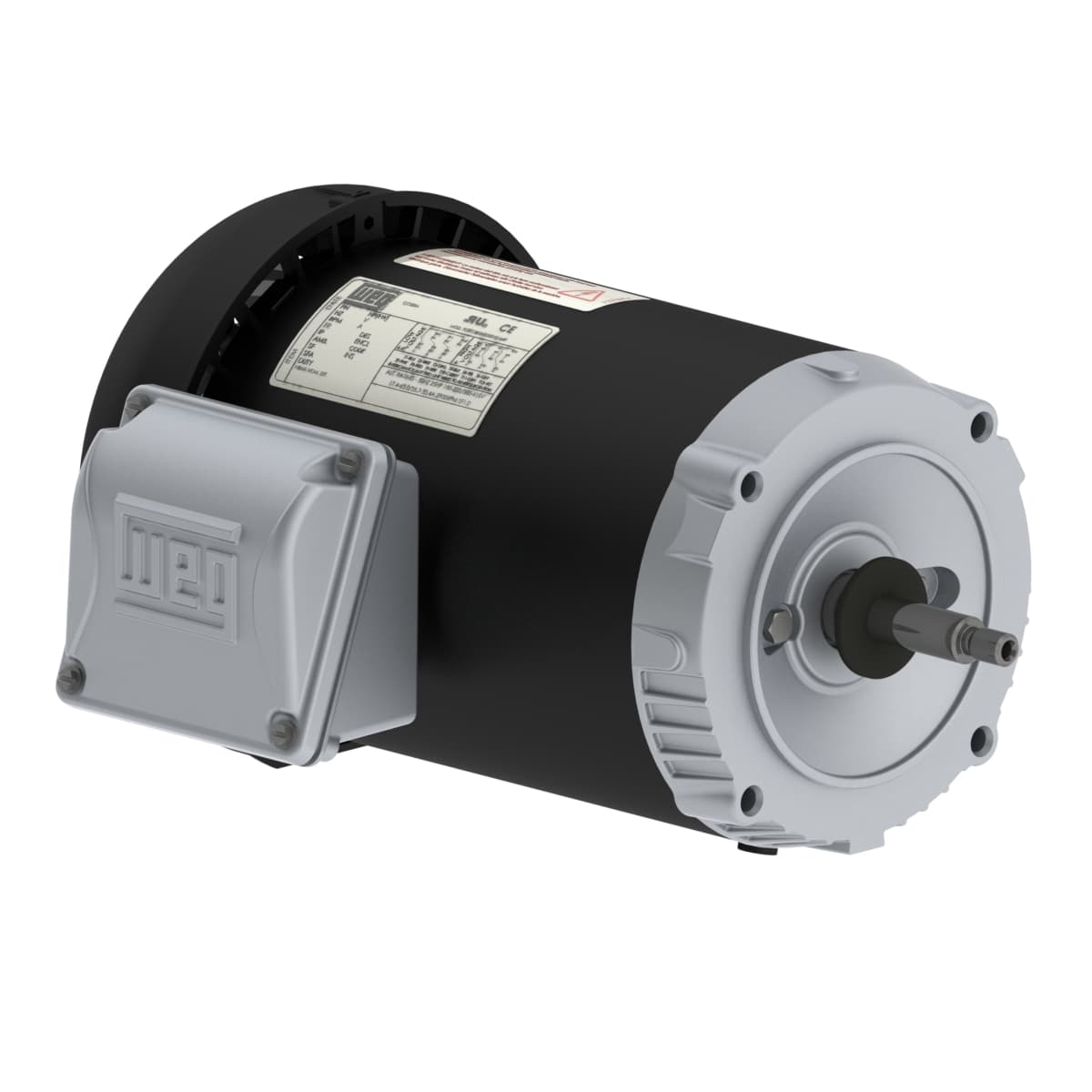

Rolled Steel Jet Pump - J type Standard Efficiency 1 HP 2P 56J 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
