30036OT3G449TS-RFVFD WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 300 HP
- Rated Speed 3575 rpm
- Flange Type Without
- Slip 0.69 %
- Locked rotor torque 229 %
- Starting Method VFD
- Number of poles 2
- Design A
- Altitude 1000 m.a.s.l.
- Frame 447/9TS
- Rotation¹ Both (CW and CCW)
- Locked rotor time 25s (cold) 14s (hot)
- Frequency 60 Hz
- Degree of Protection IP23
- Voltage 460 V
- Output 300 HP (220 kW)
- Service factor 1.15
- LRC 8.4x(Code J)
- Mounting F-1
- Rated current 329 A
- Insulation Class F
- Approx. weight³ 1943 lb
- Rated torque 441 ft.lb
- L. R. Amperes 2764 A
- Duty Cycle Cont.(S1)
- Flange Without
- Rated speed 3575 rpm
- Temperature rise 105 K
- Noise level² 87.0 dB(A)
- Rated voltage 460 V
- Breakdown torque 340 %
- Terminal box¹ Left position
- Number of Poles 2
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- No load current 102 A
- Moment of inertia (J) 33.7 sq.ft.lb
- Standard NEMA MG-1
- Output rating 300 HP
- Synchronous speed 3600 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30036OT3G449TS-RFVFD Related Documents
Manufacturer warranty
30036OT3G449TS-RFVFD WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 30036OT3G449TS-RFVFD with other AC Motors products
Number of Poles
Voltage
Output Rating
Rated Speed
Flange Type
Slip
Locked rotor torque
Starting Method
Number of poles
Design
Selected product
30036OT3G449TS-RFVFD
WEG

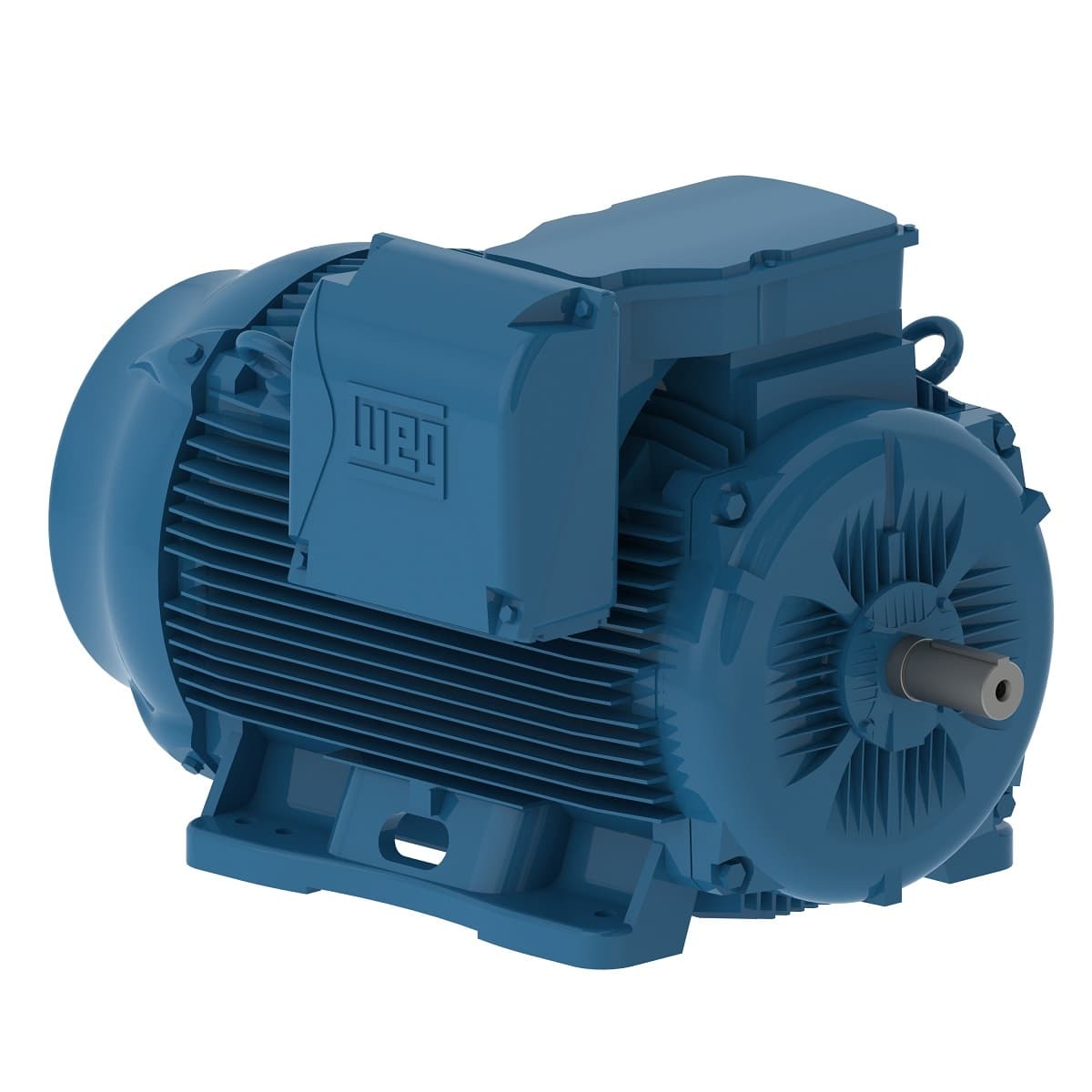

W40 NEMA Premium Efficiency 300 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
